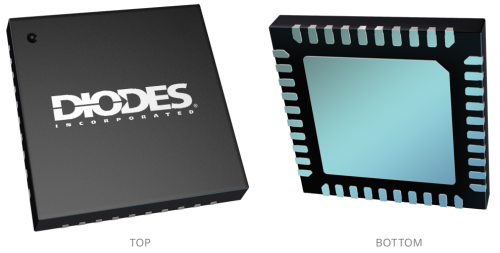

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Audio

PAM8965

12W Stereo Class-D Audio Amplifier with Synchronous Boost, SSM and External Audio Feedback

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The PAM8965 is an extremely high-efficiency Class-D stereo audio power amplifier with an integrated synchronous boost converter. The PAM8965 can drive two channels with 12W each into 4Ω speakers. The integrated amplifier can achieve system efficiency of 92% (at VBAT = 7.4V). The device consumes exceptionally low quiescent current (10mA at VBAT = 7.4V) and very low shutdown current (0.7μA). The integrated current-mode boost converter provides regulated power to a feature-laden Class-D stereo amplifier. These include: Spread spectrum modulation (SSM) for EMI suppression (audio and boost), which enables the use of inexpensive ferrite bead filters. Non-clipping power limit, which uses 41-step automatic gain control. Thermal foldback, which reduces output power as the chip heats up. External audio feedback pins, which allow for customization of sound by using feedback network design. Alternatively, these pins can be used for Kelvin connection to speaker terminals. GAIN pin to program audio gain at 0.5dB steps such that external resistors are not required to adjust gain, which can result in gain error. Out-of-audio switching for the boost converter, which minimizes audible noise coming from components on the board. Protection features include under-voltage and over-voltage protection on VBAT, over-voltage protection on PVDD, short circuit protection on all audio outputs, cycle-by-cycle current limit on boost converter, thermal shutdown of the entire system, DC protection for speakers, and an FLT pin that provides a fault flag.

Feature(s)

  • Operates from 2.8V to 5V Supply
  • 2 x 12W (10% THD+N) into 4Ω Load with VBAT = 7.4V (2SxP)
  • 2 x 8W (10% THD+N) into 6Ω Load with VBAT = 3.7V (1SxP)
  • Auto Gain Control Responds to:
  • Thermal Foldback
  • Non-Clip Power Limit
  • GAIN Pin
  • Externally Adjustable Gain from 26dB to 6dB with 0.5dB Steps
  • Exceptionally High Overall System Efficiency (92% @ VBAT = 7.4V)
  • Very Low IQ = 10mA (VBAT = 7.4V) for Boost + Stereo
  • Very Low Shutdown Current = 0.7μA
  • DC Protection for Speaker
  • Auto-Recovery on Short-Circuit Protection & Thermal Shutdown
  • External Audio Feedback Pins
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.
  • https://www.diodes.com/quality/product-definitions/

Application(s)

  • Portable Electronics
  • Bluetooth Speakers
  • Wireless Speakers
  • Music Instruments
  • High-Capacitance Piezo Actuator Drive
  • Virtual Reality 3D Active Feedback
  • PDA, GPS, Game Machines

Product Specifications

Product Parameters

Minimum VDD (V) 2.8
Compliance (Only Automotive supports PPAP) Standard
AEC Qualified No
Maximum VDD (V) 8.5 V
IQ (mA) 10 mA
Power/CH (W) @ THD=10% 11.5
Power/CH (W) @ THD=1% 9.5
Mono or Stereo Stereo
BTL N/A
SE N/A
Class-D or AB D
Power Limit Yes
Anti-Sat N/A
Headphone Out N/A
Efficiency (%) 90 %
Volume/ Gain Gain Pin Adjustable
Gain Min 6 dB
Gain Max 26 dB
SNR 100 dB
PSRR 67 dB
Special Feature Boost Converter Built-in Audio Feedback
