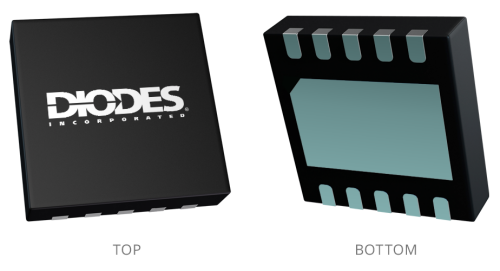

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to High-Side/Low-Side Gate Drivers

DGD0579U

HIGH FREQUENCY HIGH-SIDE AND LOW-SIDE GATE DRIVER IN
DFN3030-10

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The DGD0579U is a high-frequency high-side and low-side gate driver with internal Bootstrap Diode capable of driving N-channel MOSFETs in a half-bridge configuration. The floating high-side driver is rated up to 100V in a bootstrap configuration. The DGD0579U logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with MCUs. A UVLO for high-side and low-side will protect MOSFETs with loss of supply. Cross conduction prevention logic also protects MOSFETs by preventing the HO and LO being on at the same time. Fast and well-matched propagation delays allow a higher switching frequency, enabling a smaller, more compact power switching design, using smaller associated components. To minimize space, an internal bootstrap diode is included and the DGD0579U is offered in the W-DFN3030-10 package and operates over an extended -40°C to +125°C temperature range.

Feature(s)

  • 100V Floating High-Side Driver
  • Drives Two N-Channel MOSFETs in A Half-Bridge Configuration
  • 5A Source / 2.5A Sink Output Current Capability
  • Internal Bootstrap Diode
  • Undervoltage Lockout for High-Side and Low-Side Drivers
  • Delay Matching Maximum of 10ns
  • Propagation Delay Typical of 60ns
  • Logic Input (HIN, LIN and EN) 3.3V Capability
  • Ultra Low Standby Currents (<1µA)
  • Extended Temperature Range: -40°C to +125°C
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative.

https://www.diodes.com/quality/product-definitions/

Product Specifications

Product Parameters

Offset Voltage Max (V) 100 V
Inputs HIN, LIN, EN
Output Current IO+ (Typ) (mA) 1500 mA
Output Current IO- (Typ) (mA) 2500 mA
tON (Typ) (ns) 65 ns
tOFF (Typ) (ns) 58 ns
tR (Typ) (ns) 19 ns
tF (Typ) (ns) 15 ns
