Bizlink announces World’s first VirtualLinkTM adapter in partnership with Diodes PI3USB3200 USB 3.2 Gen 2/USB2.0 VR Mux

Description

Diodes' PI3USB3200 is a 3-to-2 differential channel multiplexer/ demultiplexer switch. This solution can switch multiple signal types up to data rate of 10Gbps. Using a unique design technique, Diodes is able to optimize the impedance and capacitance of the switch where the attenuation observed through the switch is minimal. The wide-input voltage range and protection features enable mixed analog signal design on USB legacy or USB Type-C connector. The unique design technique also offers a layout targeted for USB2.0, USB 3.2 Gen 2 signals, which minimizes the channel-to-channel skew as well as channel-to-channel crosstalk as required by high-speed signals.

Application

  • Routing high-speed differential signals, such as USB 3.2 Gen 2, USB2.0 in VR Application

Features

  • Differential Channel, 3:2 Mux/DeMux
  • Up to 10Gbps for Applications including USB2.0, USB 3.2 Gen 2
  • Bidirectional operation
  • 3dB Bandwidth: 7.0GHz
  • Low Bit-to-Bit Skew, 5ps typ
  • Low Channel-to-Channel Skew, 10ps typ
  • Low Insertion Loss: -2.4dB @5GHz
  • Return Loss: -10dB @ 5GHz
  • Low-Power Consumption 50uA typ
  • Supply Voltage 2.7V to 4.0V
  • Support Overvoltage Protection
  • Protection Feature
    • Ioff Protection for Current Leakage in Power-Down Mode
    • D1, D2 Pins Tolerance to 5.5V
  • ESD Performance
    • 2KV (HBM) and 1KV (CDM)

Product Specifications

Product Parameters

Analog or Digital? Analog
Configuration Mux, 3:2 Differential Channel
Differential Channels 3
HotInsertion N/A
Lanes 3
OtherFeatures N/A
RailToRail 1
Signal Type Differential and Single Ended
Single Ended Channels N/A
Type MUX
Voltage 3.3

Related Content

Packages
TQFN (ZBB20) MSL1

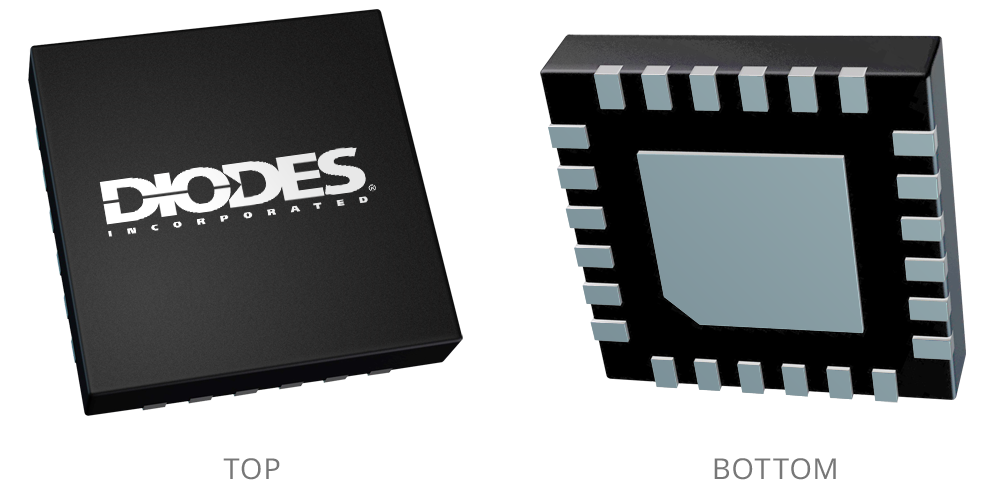

TQFN (ZR24)

Applications

Technical Documents

Design tool model software

Recommended Soldering Techniques

TN1.pdf

Additional Technical Documents are available upon request:
Application information, Evaluation board, and Other technical documents

Request Documents
Orderable Part Number Status Package Environmental Compliance Packing Buy from Distributor /
Contact Sales
Request Samples
Qty. Carrier
PI3USB3200ZBBEX Active V-QFN4525-20 TPGP 2500 T&R

PI3USB3200ZBBEX

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 2495 11/25/2020 Europe, Asia, North America Buy Now
Request Sample
PI3USB3200ZREX Active W-QFN2525-24 TPGP 3500 T&R

PI3USB3200ZREX

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 3450 11/25/2020 Europe, Asia, North America Buy Now
Request Sample

Environmental Compliance Legend:
LFF: Pb-Free Finish and RoHS 5/6
TLFP: Totally Pb-Free Product and RoHS 6/6
LFGP: Pb-free Finish and Green Product, RoHS 5/6 and Halogen Free
TPGP: Totally Pb-Free and Green Product, RoHS 6/6 and Halogen Free
GREEN: Halogen-free and RoHS compliant
RoHS: RoHS compliant but NOT halogen-free
