NRND = Not Recommended for New Design
Single Channel Smart Load Switch
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
The DML1007LDS is a single channel load switch with very low on-resistance in a small package. It contains an N-channel MOSFET for up to VBIAS-1.5V input voltage operation and 6A current channel with 3.2V to 5.5V bias supply. The load switch is controlled by a low voltage control signal through ON pin.

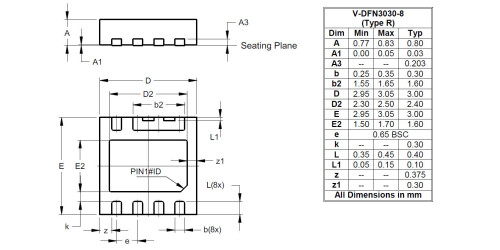

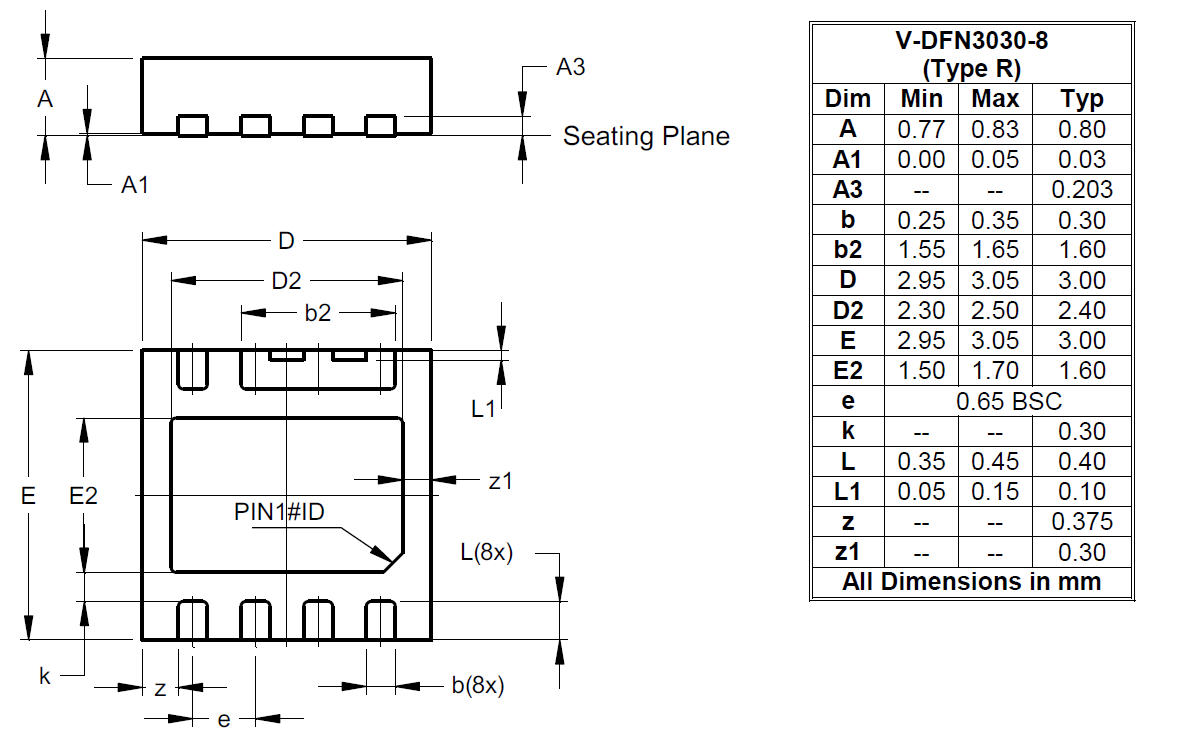

| (MAX) Maximum Current Limit Fixed (A) | not limited |
|---|---|
| (TYP) Output Rise Time mS | 0.2 |
| Channels | 1 |
| Configuration | MCM |
| Enable Logic | Active High |
| Maximum Continuous Output Current (A) | 6 |
| Maximum Operating Voltage (V) | 4 |
| Maximum Output Current | 6 |
| Minimum Operating Voltage (V) | 0.8 |
| OCP Flag | No |
| OCP Output Latch Off | No |
| OCP/SCP | No |
| Operating Ambient Temperature Range (°C) | -40 to 85 |
| Operating Voltage Range | 0.8 to 4 |
| Output Discharge | Yes |
| Output Turn-On Delay Time Typ | 100 |
| Output Turn-On Rise Time Typ | 150 |
| Power Good | No |
| AEC Qualified | No |
| Quiescent Current (µA) | 35 |
| RDS(ON) | 8 |
| Reverse Current Block | No |
| Typical Quiescent Current | 35 |
| UL Certificate | No |
| VIN MAX (V) | 1.5 |
| VIN MIN (V) | 0.8 |
