G10100F4 (Not Recommended for new design)

NRND = Not Recommended for New Design

SURFACE MOUNT SCHOTTKY BARRIER DIODE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

  • Rating to 100V PRV
  • Ideal for printed circuit board
  • Low profile package
  • Qualified according to AEC-Q101 Rev C
  • Reliable low cost construction utilizing molded plastic
  • Technique
  • Available in “Green” Package: F4
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Product Specifications

Product Parameters

@ IF (A) 10
@ TerminalTemperature TT (ºC) 120
@ VR (V) 100
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
Forward VoltageDrop VF(V) 0.8
MaximumAverageRectifiedCurrent IO (A) 10
Maximum ReverseCurrent IR (µA) 120
Peak ForwardSurge CurrentIFSM(A) 120
Peak RepetitiveReverse VoltageVRRM (V) 100
AEC Qualified Yes
TotalCapacitance CT (pF) 105

Related Content

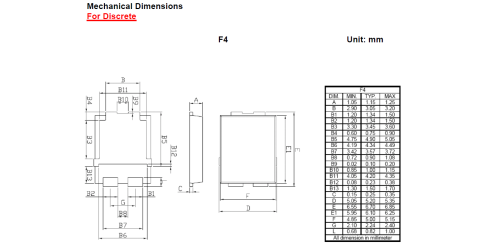

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2584 2022-05-19 2022-11-19 Device End of Life (EOL)
PCN-2552 2021-12-15 2021-12-15 Add Product Ordering Information on Device Data Sheets for Select Lite-On Semiconductor (LSC) Brand Products
