快速充电器通过使用 Type-A 至 Mini-B 电缆将输出电压提高到 5V 以上，通过能够处理更大电流的特殊电缆提供超过 2.0A 的更大输出电流来提供快速充电能力。典型的快速充电解决方案由三个执行不同功能的主要 IC 组成：PSR 调节、SR 调节和协议解码器。协议解码器解释在充电器和移动电话之间交换的所需电压和/或电流或其他与快速充电相关的信息。

Complete Ultra-High-Power-Density Charger Solution

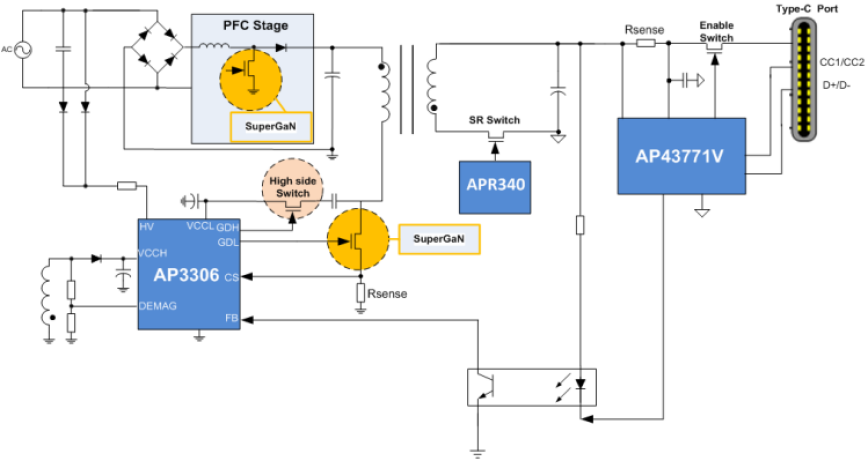

Diodes released an award winning three-chip solution for enhancing the performance of ultra-high-power-density USB Type-C® power delivery (PD) systems.   Products: The AP3306 active clamp flyback PWM controller The APR340 synchronous rectification controller The AP43771V PD controller   Whitepaper Holistic Solution to Ultra-High-Power-Density Charger Design – 65W PD3.0 PPS Charger Designs   Press Releases: Complete Ultra-High-Power-Density Charger Solution from Diodes Incorporated Delivers Improved Efficiency and Reduced Size Advanced Charger Solution from Diodes Incorporated Earns Accolade at the EE Awards Asia   Reference Designs: EVB1 - 65W ACF PD3.0 PPS Charger Design with Super Junction MOSs EVB2 - 65W ACF PD3.0 PPS Charger Design with Super GaN FETs   Typical Application Diagram: apr340 APR340 ap3306 AP3306 ap43771v AP43771V

140W Active Clamp Flyback (ACF), GaN Switch-based, USB PD3.0 Adaptor

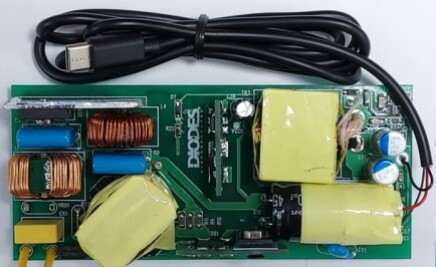

Complete 140W USB Type-C® power delivery (PD) 3.0 adapter evaluation and development kit. Request a kit here    Products: The AP3306 active clamp flyback PWM controller The APR340 synchronous rectification controller The AP43771V PD controller   Whitepaper Holistic Solution to Ultra-High-Power-Density Charger Design – 65W PD3.0 PPS Charger Designs   Press Release: Diodes Incorporated & Transphorm Introduce 140W Active Clamp Flyback (ACF) SuperGaN USB-C PD Adapter Evaluation Kit   Evaluation Board: Typical Application Diagram:

Reference Designs:

1. 15W Low-Cost Type C Charger (EV1 – AP3785T PSR Controller + APR34309C SR Switcher + AP43761 Type C Decoder)
2. 18W/22W PD3.0 PPS / QC4/4+ Charger (EV1 AP39303 QR PWM+APR34709 SR+AP43771 Decoder)
3. 18W QC3.0 SSR Premium Charger EV1
4. 18W PD3.0 PPS Car Charger EV1.0 Board User Guide
5. 18W C+A PD3.0+QC3.0 Adapter User Guide
6. 33W PD3.0 PPS Car Charger EV1.0 Board User Guide
7. 33W USB PD3.0 PPS / QC4/4+ Charger (EV2 AP3303 QR PWM+APR347 SR+AP43771 Decoder
8. 45W USB PD 3.0+PPS EV3 Compact Adapter Reference Design User's Guide
9. 60W USB C+A EV1 Adapter Reference Design AP3108L+APR348_AP43771
10. 65W ACF PD3.0 PPS Adapter EVB1 User Guide
11. 65W ACF PD3.0 PPS Adapter EVB2 User Guide
12. 140W ACF PD3.0 GaN EVB1 User Guide
