Contact Image Sensors

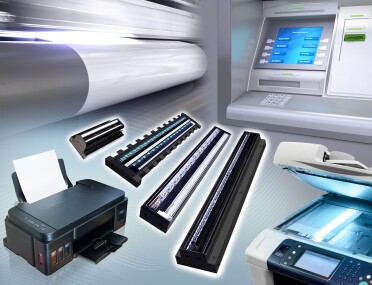

Contact Image Sensor (CIS) is an input device widely applied on Multi-Functions Peripherals, fax machines etc. Liteon Semiconductor Corporation, a Product Line of Diodes Incorporated, assembled rod lens, LED light source and sensor IC chip to form the CIS module.

CIS react to the brightness of a document through an intact optical electronic module in a 1:1 scanning ratio. They thereby excel in making light weight, slim and compact devices of uncluttered structure that is easy to set up and use. In addition, its lower power consumption and cost made it a mainstream employment.

Our experienced R&D team will also customize our sensor module design accordingly to fully meet our customers' expectations in addition to the wide range of resolution designs offered.

Application Scan Width(mm)  Resolution(Pixels) Light Source Clock(Hz) Data Output Part No.
Document Scan 216 200 G 500K ~ 1MHz Analog DL100
54 300/600/1200
300/600
R/G/B 4M/10MHZ
16MHz
Analog / Digital
(LVDS/ V by one)
Single / Multi-channel outputs
DL525-
108 DL518-
216 DL520-
308 DL526-
216 / 308 300/600 White 35M/50MHz DL626-
10 ~ 308 200/300/600/1200 R/G/B 1M ~ 50MHz Customized
Special Wavelength Scan 54 300/600/1200 R/G/B/IR 4M/10MHz DL525-
300/600 R/G/B/IR/UV 16MHz
108 300/600/1200 R/G/B/IR 4M/10MHz DL518-
300/600 R/G/B/IR/UV 10M/16MHz DL518-
183 200 R/G/B/IR 8M/16M/24M/35M DL705-
200 200 R/G/B/IR(UV) 16M/24M/35M DL705-
308 100/200 R/G/B/IR 8M/16M/24M/35M DL706-
18 ~ 308 200/300/600/1200 R/G/B/IR(UV) 4M ~ 50MHz

Customized

Application Scan Width(mm)  Date Rate Working Distance Line Freq. (KHz) Channels I/F
Industry Inspection Modular 400 ~ 1800 10MHHz(1200DPI) 15~17mm 10 22~100 Analog
658 ~ 1000 16MHHz(600DPI) 30 36 ~ 54
310 ~ 760 35MHHz(600DPI) 68 16 Digital
(LVDS)
330 ~ 658 35MHHz(300DPI) 115 9
330 ~ 990 35MHHz(2400DPI) 168mm 6 3 ~ 6
330 ~ 990 35MHHz(1200DPI) 12 3 ~ 6
330 ~ 990 35MHHz(2400DPI) 6 6 Camera link
54 ~ 1800 Customize
