PAM8907

31VPP Output Piezo Sounder Driver With Boost Converter

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The PAM8907 is a piezoelectric horn driver with built-in boost converter, capable of driving a ceramic/piezo sounder with up to 31VPP output. With integrated boost converter, the PAM8907 can provide an optimized solution with higher Sound Pressure Level (SPL) for louder output sound, lower quiescent current for longer standby time, and auto turn-on/off feature for extended operating lifetime. The PAM8907 provides clear benefits for battery-operated tracker, piezoelectric horn or alarm related applications.

The PAM8907 integrates a boost converter that operates at a typical frequency of 1.8MHz. With integrated boost converter and unique piezo sounder driver technology, the PAM8907 provides small inrush current, low EMI and yet highly efficient system performance. PAM8907 Boost converter output can be set to either 11V or 15.6V with minimum external components for various application usages.

The PAM8907 has built-in automatic shutdown and wake-up functions for longer operating lifetime requirement. It also features thermal shutdown protection, over-current protection, over-voltage protection and under-voltage-lockout protection to assure safe system operation.

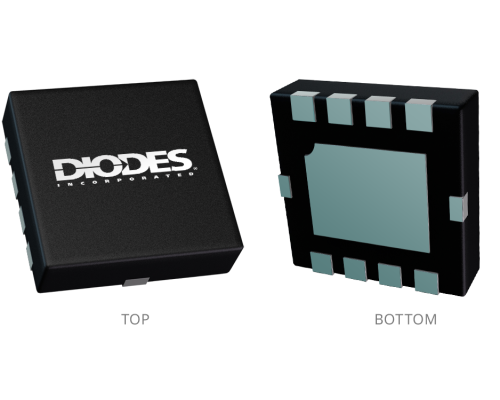

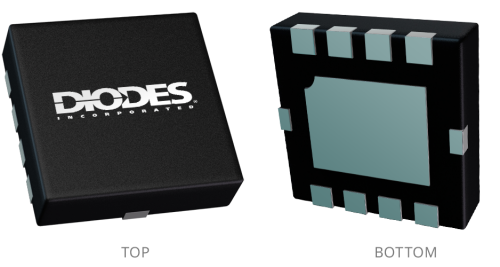

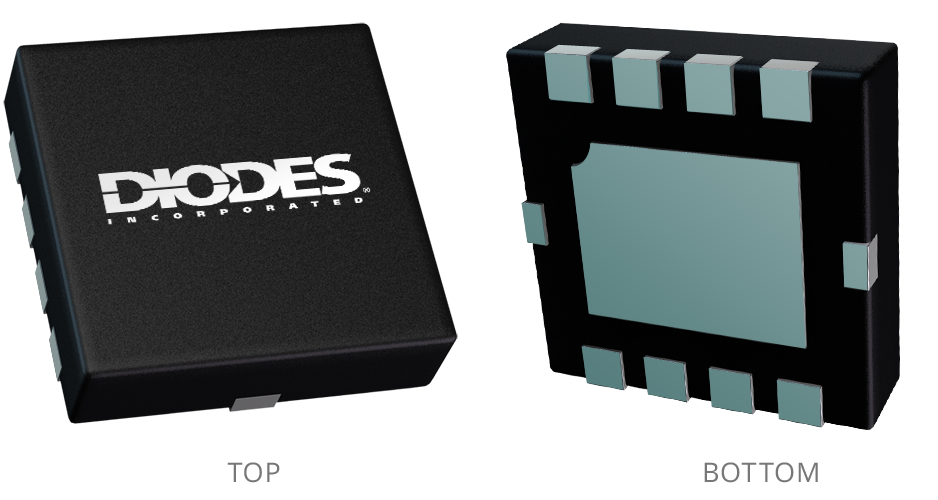

The PAM8907 is available in U-QFN2020-10 package

Feature(s)

  • Supply Voltage Range from 1.8V to 5.5V
  • Intergraded Boost Converter VOUT = 11V or 15.6V
  • Drive Piezo Sounder with up to 31VPP
  • High-Speed Driver Designed with Very Short Turn-On/Turn-Off
  • No Voltage Cross Output at Shutdown Mode
  • High Impendence Output at Shutdown Mode
  • Low Current Consumption, with Shutdown Current < 1μA
  • Automatic Shutdown and Wake-Up Control
  • Available in Space-Saving U-QFN2020-10 package
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

  • Bluetooth or Wireless Location Tracker
  • Air Humidifier or Ultrasonic Related Piezo Driver Application
  • Security Devices, Home Appliances
  • Haptic Feedback



Product Specifications

Product Parameters

Minimum VDD (V) 1.8
AEC Qualified No
Maximum VDD (V) 5.5 V
IQ (mA) <0.001 mA
Power/CH (W) @ THD=10% N/A
Power/CH (W) @ THD=1% N/A
Mono or Stereo Mono
BTL Yes
SE No
Class-D or AB D
Power Limit No
Anti-Sat No
Headphone Out No
Efficiency (%) N/A %
Volume/ Gain 2-Step
Gain Min N/A dB
Gain Max N/A dB
SNR N/A dB
PSRR N/A dB
Special Feature Boost Converter Built-in
