The rapid adoption of smart devices, surging data traffic, and growing demand for cloud applications are pushing networks to deliver greater bandwidth, higher concurrency, and real-time responsiveness. Meeting these challenges requires increased capacity, lower cost per bit, and reduced power consumption—driving data transmission rates to new heights. Diodes Incorporated addresses these needs with ultra-low jitter timing sources in compact 2016-size packages for Small Form-factor Pluggable (SFP) modules, enabling higher data rates with generous jitter margin.
Fiber Optics Modules |

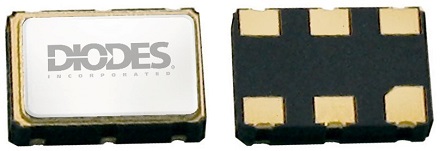

Crystal Oscilators (XO) |
| Diodes Part Number | PKG size | Frequency (MHz) | Logic | Voltage (V) | Freq. Stability | Phase Jitter (typ./ max) | Compatible Epson | Compatible Abracon | Compatible SiTime | Status |
|---|---|---|---|---|---|---|---|---|---|---|
| UF32F62003 | 3225 | 156.250 | LVPECL | 3.3 | -40 to +85C ±25ppm | 50/70 | SG3225-EEN | MP | ||
| UF32F62006 | 3225 | 156.250 | LVPECL | 3.3 | -40 to +105C ±30ppm | 50/70 | SG3225-EEN | MP | ||
| HX3BF62004 | 3225 | 156.250 | LVPECL | 3.3 | -40 to +105C ±30ppm | 100 | SiT9501AI | MP | ||
| UX3BF62001 | 3225 | 156.250 | LVPECL | 3.3 | -40 to +85C ±25ppm | 70/100 | SiT9501AI | MP | ||
| UF22F62003 | 2520 | 156.250 | LVPECL | 3.3 | -40 to +105C ±30ppm | 50/70 | SG2520-EEN | AK2B | MP | |
| UF22F62007 | 2520 | 156.250 | LVPECL | 3.3 | -40 to +85C ±25ppm | 50/70 | SG2520-EEN | AK2B | MP | |
| UX2BF62005 | 2520 | 156.250 | LVPECL | 3.3 | -40 to +85C ±25ppm | 70/100 | SiT9501AI | MP | ||
| UF2BV25003 | 2520 | 312.500 | LVPECL | 3.3 | -40 to +105C ±70ppm | 35/60 | SG2520-EEN | SiT9501AI | Sample | |
| UF2BV25005 | 2520 | 312.500 | LVPECL | 3.3 | -40 to +105C ±30ppm | 35/60 | Sample | |||
| UF2BV25004 | 2520 | 312.500 | LVPECL | 2.5 | -40 to +105C ±70ppm | 35/60 | SG2520-EEN | SiT9501AI | Sample | |
| UX1BF62001 | 2016 | 156.250 | LVPECL | 3.3 | -40 to +85C ±50ppm | 100 | SiT9501AI | MP | ||
| UF1BV25001 | 2016 | 312.500 | LVPECL | 3.3 | -40 to +105C ±70ppm | 35/60 | SG2016-EEN | SiT9501AI | Sample | |
| UF1BV25005 | 2016 | 312.500 | LVPECL | 3.3 | -40 to +105C ±30ppm | 35/60 | Sample | |||
| UF1BV25004 | 2016 | 312.500 | LVPECL | 2.5 | -40 to +105C ±70ppm | 35/60 | SG2016-EEN | SiT9501AI | Sample |
| Diodes Part Number | PKG size | Frequency (MHz) | Logic | Voltage (V) | Freq. Stability | Phase Jitter (typ./ max) | Compatible Epson | Compatible Abracon | Compatible SiTime | Status |
|---|---|---|---|---|---|---|---|---|---|---|
| UF33F62003 | 3225 | 156.250 | LVDS | 3.3 | -40 to +85C ±20ppm | 60/90 | SG3225-VEN | MP | ||
| UF33F62006 | 3225 | 156.250 | LVDS | 3.3 | -40 to +105C ±50ppm | 60/80 | SG3225-VEN | MP | ||
| UX3CF62013 | 3225 | 156.250 | LVDS | 3.3 | -40 to +85C ±25ppm | 100 | SiT9501AI | MP | ||
| UF23F62010 | 2520 | 156.250 | LVDS | 1.8 | -40 to +85C ±20ppm | 70 | SG2520-VEN | AK2B | MP | |
| UF23F62012 | 2520 | 156.250 | LVDS | 3.3 | -40 to +105C ±35ppm | 70 | SG2520-VEN | AK2B | MP | |
| UF23F62014 | 2520 | 156.250 | LVDS | 3.3 | -40 to +85C ±25ppm | 70 | SG2520-VEN | AK2B | MP | |
| UX2CF62004 | 2520 | 156.250 | LVDS | 3.3 | -40 to +85C ±25ppm | 100 | SiT9501AI | MP | ||
| UF13F62001 | 2016 | 156.250 | LVDS | 1.8 | -40 to +85C ±25ppm | 55/70 | SG2016-VEN | MP | ||
| UX1CF62001 | 2016 | 156.250 | LVDS | 1.8 | -40 to +85C ±25ppm | 100/150 | SiT9501AI | MP |
| Diodes Part Number | PKG size | Frequency (MHz) | Logic | Voltage (V) | Freq. Stability | Phase Jitter (typ./ max) | Compatible Epson | Compatible Abracon | Compatible SiTime | Status |
|---|---|---|---|---|---|---|---|---|---|---|
| UF2CV25402 | 2520 | 312.500 | Hi-swing LVDS | 3.3 | -40 to +105C ±70ppm | 35/60 | SG2520-VEN | SiT9501AI | Sample | |
| UF2CV25B01 | 2520 | 312.500 | Hi-swing LVDS | 3.3 | -40 to +105C ±30ppm | 35/60 | SG2520-VEN | SiT9501AI | Sample | |
| UF2CV25403 | 2520 | 312.500 | Hi-swing LVDS | 2.5 | -40 to +105C ±70ppm | 35/60 | SG2520-VEN | SiT9501AI | Sample | |
| UF1CV25001 | 2016 | 312.500 | Hi-swing LVDS | 3.3 | -40 to +105C ±70ppm | 35/60 | SG2016-VEN | SiT9501AI | Sample | |
| UF1CV25B02 | 2016 | 312.500 | Hi-swing LVDS | 3.3 | -40 to +105C ±30ppm | 35/60 | SG2016-VEN | SiT9501AI | Sample | |
| UF1CV25003 | 2016 | 312.500 | Hi-swing LVDS | 2.5 | -40 to +105C ±70ppm | 35/60 | SG2016-EEN | SiT9501AI | Sample |
Ordering and Sample Information
Please contact Diodes Incorporated sales for details
