AP7343Q

Automotive Compliant 300MA High PSRR Low Noise LDO with ENABLE

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AP7343Q is a low dropout regulator with high output voltage accuracy, low RDS(ON), high PSRR, low output noise and low quiescent current. This regulator is based on a CMOS process.


The AP7343Q includes a voltage reference, error amplifier, current limit circuit, and an enable input to turn it on and off. With the integrated resistor network fixed output voltage versions can be delivered.


With its low power consumption and, line and load transient responses the AP7343Q is well suited for noise sensitive automotive applications.

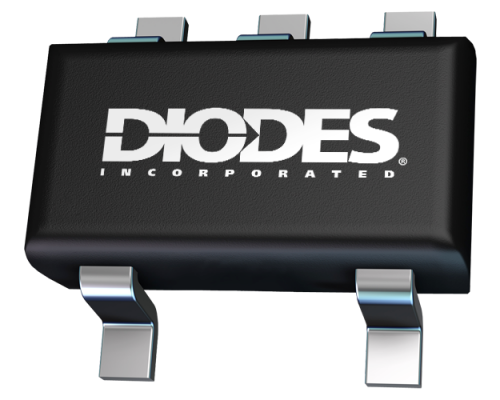

The AP7343Q is packaged in SOT25 packages, which allows for the smallest footprint and dense PCB layout.

Application(s)

• Infotainment Power Supplies
• Automotive RF Supply
• Cameras
• Automotive POL in ADAS
• Automotive Wireless Communication

Feature(s)

• Infotainment Power Supplies
• Automotive RF Supply
• Cameras
• Automotive POL in ADAS
• Automotive Wireless Communication

Product Specifications

Product Parameters

Qualified to AECQ10x Yes
Automotive Compliant PPAP Yes
Output Current N/A A
Dropout Voltage Max .510 V
Quiescent Current Typ 35 µA
OperatingInputVoltage Min 1.7 V
OperatingInputVoltage Max 5.25 V
Output Voltage 0.9, 1.0, 1.1, 1.2, 1.5, 1.8, 2.5, 2.7, 2.8, 2.9, 3.0, 3.3 V
Operating Temperature (Ambient) -40 to 125 ºC
Operating Temperature -40 to 125 Junction ºC
