PAM8902H

Description

The PAM8902H is a mono, Class-D audio amplifier with integrated boost converter designed for piezo and ceramic speakers. The PAM8902H is capable of driving a ceramic/piezo speaker with 30V_PP (10.6Vrms) from a 3.6V power supply. The PAM8902H's boost converter operates at a fixed frequency of 1.5MHz, and provides a 17.5V supply with a minimum number of external components. The PAM8902H features an integrated audio low pass filter that rejects high frequency noise thus improving audio fidelity. And there are three gain modes of 21dB, 26dB, and 32.5dB for easy using. The PAM8902H also provides thermal, short, under and overvoltage protection.

The PAM8902H is available in a 16-ball 1.95mm x 1.95mm CSP-16L package and 16-pin W-QFN4040-16 (Standard) package.

Feature(s)

• Supply Voltage Range from 2.5V to 5.5V
• 30V_PP Output Load Voltage from a 2.5V Supply
• Integrated Boost Converter Generates 17.5V Supply
• Programmable Soft-Start
• Small Boost Converter Inductor
• Selectable Gain of 21dB, 26dB, and 32.5dB
• Selectable Boost Output Voltage of 8V, 12V, and 17.5V
• Low Shutdown Current: < 1µA
• Built-in Thermal, OCP, OVP, Short Protection
• Available in Space Saving Packages:
  • 16-Ball 1.95mm x 1.95mm CSP-16L Package

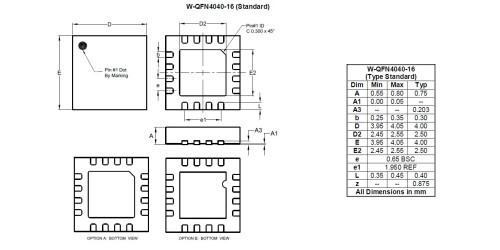

  • 16-Pin W-QFN4040-16 (Standard) Package
• Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
• Halogen and Antimony Free. “Green” Device (Note 3)
• For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

• Wireless or cellular handsets
• Portable DVD players
• Personal digital assistants (PDAs)
• Electronic dictionaries
• Digital still cameras
