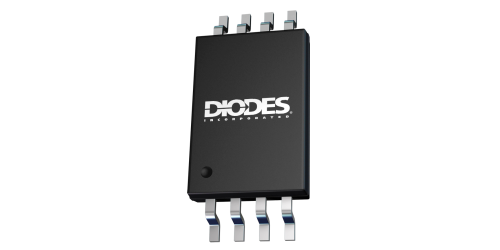

TSSOP-8

Back to LM2904A

LM2904A

Contact Sales

Description

The LM2902/2904 series amplifiers consist of four and two independent high-gain operational amplifiers with very low input offset voltage specification. They have been designed to operate from a single power supply over a wide range of voltages; however operation from split power supplies is also possible. They offer low power supply current independent of the magnitude of the power supply voltage.

The LM2902/2904 series are characterized for operation from -40? to +125? and the dual devices are available in SO-8 and the quad devices available in SO-14 and TSSOP-14 with industry standard pin-outs. Both use green mold compound as standard.

Application(s)

Embedded system
Precision power supplies
Industrial control

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	No
Number of Channels	2
Minimum Supply Voltage (V)	3 V
Maximum Supply Voltage (V)	36 V
Supply Current @ 5V (per Op Amp) (mA)	0.6 mA
Input Offset Voltage typ (mV)	1 mV
Input Bias Current typ (nA)	25 nA
Minimum Input Common Mode Voltage (V)	V- V
Maximum Input Common Mode Voltage (V)	V+ -1.5 V
Output Current Source (mA)	16 mA
Output Current Sink (mA)	16 mA
Rail-Rail	None
Operating Ambient Temperature Range (°C)	-40 to 125 °C

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2770	2025-10-30	2025-10-30	Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products
PCN-2512	2021-04-16	2021-07-16	Qualified Additional Assembly & Test (A/T) Site
