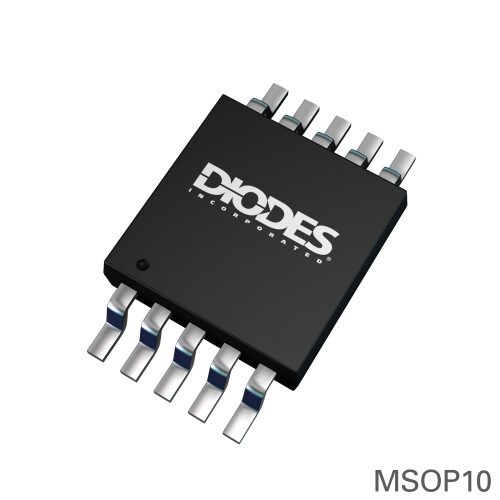

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

SO 8

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Comparators



Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


The LM2901Q/LM2901AQ/LM2903Q/LM2903AQ series comparators consist of four and two independent precision voltage comparators with very low input offset voltage specification. They are designed to operate from a single power supply over a wide range of voltages; however operation from split power supplies is also possible. They offer low power supply current independent of the magnitude of the power supply voltage.

The LM2901Q/LM2901AQ/LM2903Q/LM2903AQ series comparators are designed to directly interface with TTL and CMOS.

The LM2903Q/LM2903AQ dual devices are available in SO-8, MSOP8 and TSSOP-8 packages; and the LM2901Q/LM2901AQ quad devices are available in SO-14 and TSSOP-14 packages – all are in industry-standard pinouts.

All devices use “green” mold compound and have been qualified to AEC-Q100 Grade 1 and are automotive compliant, supporting PPAPs.


  • Wide Power Supply Range:
    • Single Supply: 2V to 36V
    • Dual Supplies: ±1.0V to ±18V
  • Very Low Supply Current Drain – Independent of Supply Voltage
    • LM2903Q: 0.6mA
    • LM2901Q: 0.9mA
  • Low Input Bias Current: 25nA
  • Low Input Offset Current: ±5nA
  • Typical Offset Voltage:
    • Non-A Device: 2mV
    • A Device: 1mV
  • Common-Mode Input Voltage Range Includes Ground
  • Differential Input Voltage Range Equal to the Power Supply Voltage
  • Low Output Saturation Voltage:
    • LM2903Q: 200mV at 4mA
    • LM2901Q: 100mV at 4mA
  • Output Voltage Compatible with TTL, MOS and CMOS
  • Qualified to AEC-Q100 Grade 1
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • The LM2901Q/LM2901AQ/LM2903Q/LM2903AQ is suitable for automotive applications requiring specific change control; this part is AEC-Q100 qualified, PPAP capable, and manufactured in IATF16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Automotive
AEC Qualified Yes
Minimum Supply Voltage (V) 2 V
Maximum Supply Voltage (V) 36 V
Supply Current @ 5V (per Op Amp) (mA) 0.6 mA
Input Offset Voltage (Typ/Max) 2 to 7 mV
Input Bias Current typ (nA) 25 nA
Minimum Input Common Mode Voltage (V) - V
Maximum Input Common Mode Voltage (V) VCC -1.5 V
Output Current Sink (mA) 16 mA
Number of Channels 2
Operating Ambient Temperature Range (°C) -40 to 125 °C
Output Type Open Collector
