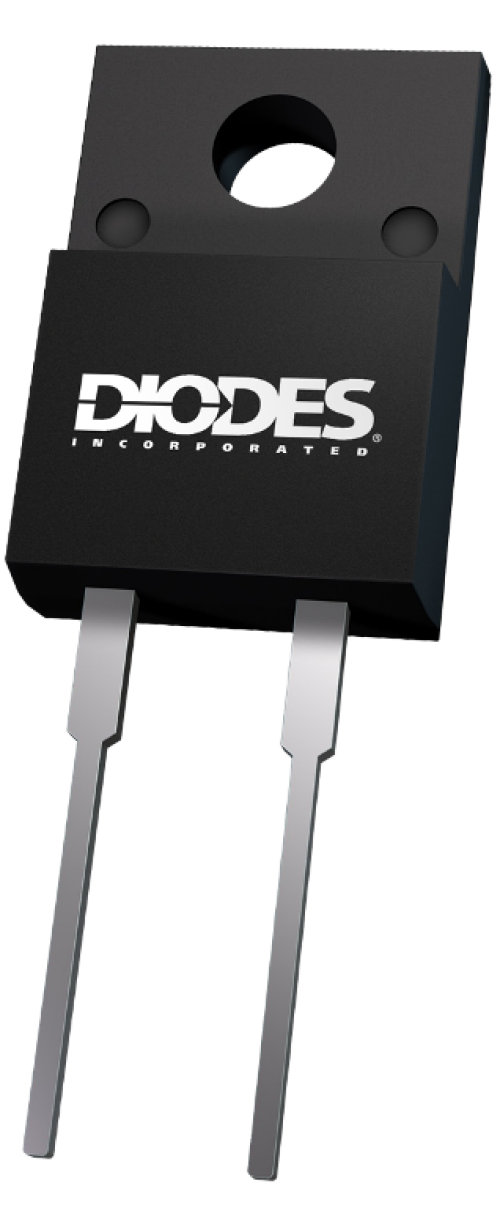

ITO220AC Type WX NC

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to SiC Diodes

DSC04C065FP

SiC Diode

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

Packaged in the robust industry-standard ITO220AC (Type WX-NC) package, the DSC04C065FP provides excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode, or blocking diode in: power factor correction, industrial motor drivers, power inverters, SMPS, and UPS.

Feature(s)

  • Low Conduction and Switching Loss
  • High Temperature Application
  • Positive Temperature Coefficient on VF
  • Fast Reverse Recovery
  • High Surge Current Capability
  • Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

  • Power factor correction
  • Industrial motor drivers
  • Power inverters
  • SMPS
  • UPS

Product Specifications

Product Parameters

AEC Qualified Yes
Compliance (Only Automotive supports PPAP) Standard
Product Type SiC Diodes
Configuration Single
Maximum Average Rectified Current IO (A) 4
Maximum Peak Forward Surge Current IFSM (A) 28
Peak Repetitive Reverse Voltage VRRM (V) 650
Forward VoltageDrop VF(V) 1.7
@ IF (A) 4
Maximum Reverse Current IR (μA) 170
@ VR (V) 650
Total Capacitive Charge (nC) 11 Qc
Total Capacitance CT (pF) 120
