DMPH33M8SPSWQ

30V P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101 and supported by a PPAP.

100% Unclamped Inductive Switch (UIS) Test in Production
Thermally Efficient Package-Cooler Running Applications
High Conversion Efficiency
Low R_DS(on) – Minimizes On State Losses < 1.1mm Package Profile – Ideal for Thin Applications
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The DIODES™ DMPH33M8SPSWQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities.

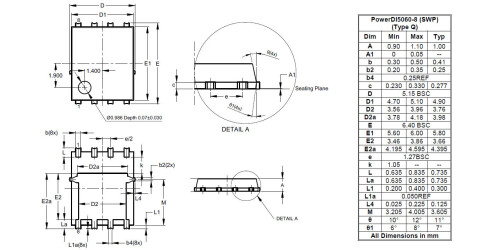

Product Specifications

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Automotive
Polarity	P
ESD Diodes (Y\|N)	No
\|V_DS\| (V)	30 V
\|V_GS\| (±V)	20 ±V
\|I_DS\| @T_C = +25°C (A)	100 A
P_D @T_A = +25°C (W)	3.4 W
R_DS(ON)Max@ V_GS(10V)(mΩ)	3.8 mΩ
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	10 mΩ
\|V_GS(TH)\| Min (V)	1 V
\|V_GS(TH)\| Max (V)	3 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	40.7 nC
Q_G Typ @ \|V_GS\| = 10V (nC)	80.8 nC
C_ISS Typ (pF)	3,775 pF
C_ISS Condition @\|V_DS\| (V)	15 V

SPICE Model

DMPH33M8SPSWQ.spice.txt

Recommended Soldering Techniques

TN1.pdf
