DMP3007SCGQ

30V P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

This MOSFET is designed to meet the stringent requirements of automotive applications. It is qualified to AEC-Q101 and supported by a PPAP.

Low RDS(ON) – Ensures On State Losses are Minimized

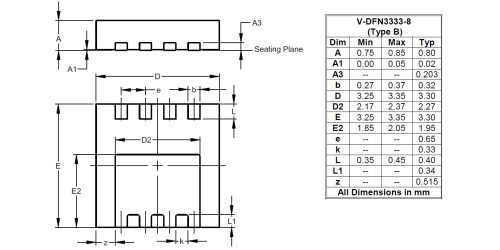

Small Form Factor Thermally Efficient Package Enables Higher Density End Products
Occupies Just 33% of the Board Area Occupied by SO-8 Enabling Smaller End Product
100% Unclamped Inductive Switching (Test in Production) – Ensures More Reliability
HBM ESD Protection Level of 8kV Typical

Product Specifications

AEC Qualified	Yes
Compliance (Only Automotive(Q) supports PPAP)	Automotive
Polarity	P
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	30 V
\|V_GS\| (±V)	25 ±V
\|I_DS\| @T_C = +25°C (A)	50 A
P_D @T_A = +25°C (W)	2.4 W
R_DS(ON)Max@ V_GS(10V)(mΩ)	6.8 mΩ
R_DS(ON)Max@ V_GS(4.5V)(mΩ)	13 mΩ
\|V_GS(TH)\| Max (V)	3 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	31.2 nC
Q_G Typ @ \|V_GS\| = 10V (nC)	64.2 nC
C_ISS Typ (pF)	2826 pF
C_ISS Condition @\|V_DS\| (V)	15 V

SPICE Model

DMP3007SCGQ.spice.txt

Recommended Soldering Techniques

TN1.pdf
