DMN2080UCB4

N-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

This new generation MOSFET is designed to minimize the on-state resistance (RDS(ON)) with thin WLCSP packaging process and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Feature(s)

  • Built-in G-S Protection Diode Against ESD 2kV HBM
  • Trench-MOS Technology with The Lowest RDS(ON):
    • RDS(ON) = 43mΩ to Minimize On-State Losses
  • VGS(TH) = 0.7V Typ. for A Low Turn-On Potential

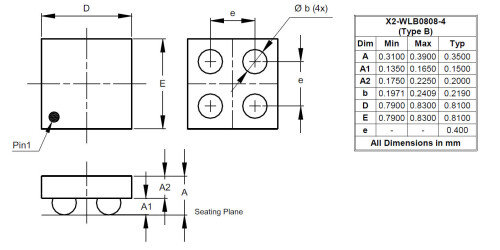

  • CSP with Footprint 0.8mm × 0.8mm
  • Height = 0.35mm for Low Profile
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • DC-DC Converters
  • Battery Management
  • Load Switch

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive(Q) supports PPAP) Standard
Polarity N
ESD Diodes (Y|N) Yes
|VDS| (V) 20 V
|VGS| (±V) 8 ±V
|IDS| @TA = +25°C (A) 4
PD @TA = +25°C (W) 1.25
RDS(ON)Max@ VGS(4.5V)(mΩ) 56 mΩ
RDS(ON)Max@ VGS(2.5V)(mΩ) 68 mΩ
RDS(ON)Max@ VGS(1.8V)(mΩ) 90 mΩ
|VGS(TH)| Min (V) 0.4 V
|VGS(TH)| Max (V) 1 V
QG Typ @ |VGS| = 4.5V (nC) 7.4 nC
CISS Typ (pF) 540 pF
CISS Condition @|VDS| (V) 10 V
