DMN2023UCB4

N-Channel MOSFET

Datasheet

Contact Sales

Description

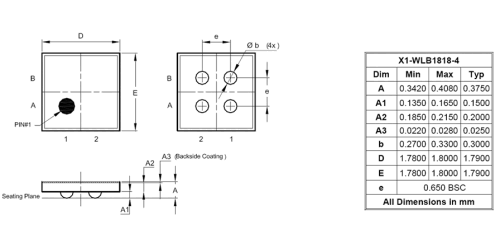

This new generation MOSFET has been designed to minimize the on-state resistance (R_DS(ON)) with thin WLCSP packaging process and yet maintain superior switching performance, making it ideal for high efficiency power management applications.

Application(s)

Battery Management
Load Switch
Battery Protection

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
AEC Qualified	Yes
Polarity	N+N
ESD Diodes (Y\|N)	Yes
\|V_DS\| (V)	24 V
\|V_GS\| (±V)	12 ±V
\|I_DS\| @T_A = +25°C (A)	6 A
P_D @T_A = +25°C (W)	1.45 W
R_DS(ON)Max@ V_GS(4.5V) (mΩ)	26 mΩ
R_DS(ON)Max@ V_GS(2.5V) (mΩ)	40 mΩ
\|V_GS(TH)\| Min (V)	0.5 V
\|V_GS(TH)\| Max (V)	1.3 V
Q_G Typ @ \|V_GS\| = 4.5V (nC)	29 nC
C_ISS Typ (pF)	2564 pF

Technical Documents

SPICE Model

DMN2023UCB4.spice.txt

Recommended Soldering Techniques

TN1.pdf

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2770	2025-10-30	2025-10-30	Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products
