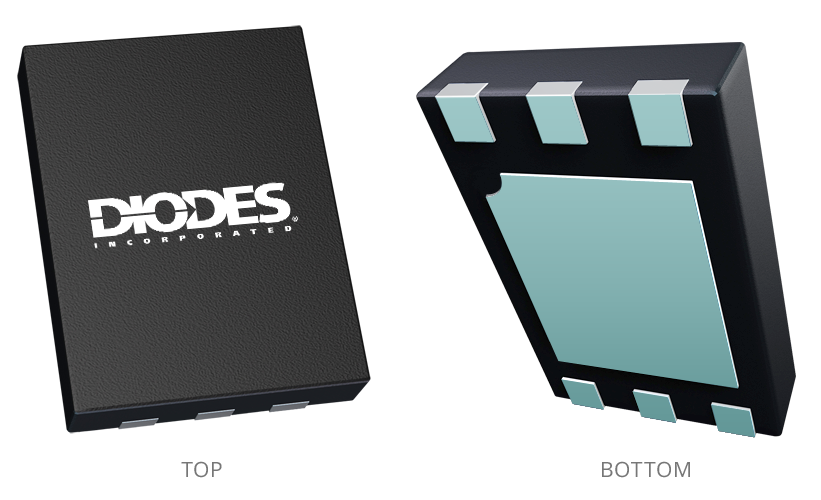

DMN2016LHAB

N-Channel Mosfet

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The uses advanced trench technology to provide excellent RDS(ON), low gate charge and operation with gate voltages as low as -1.8V while retaining a -12V VGS(MAX) rating. It is ESD protected. This device is suitable for use as a uni-directional or bi-directional load switch, facilitated by its common-drain configuration

Application(s)

  • Power Management Functions
  • Battery Pack
  • Load Switch

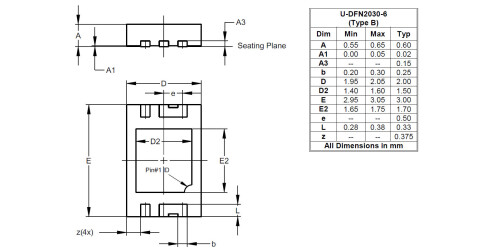

  • Product Specifications

    Product Parameters

    AEC Qualified Yes
    Compliance (Only Automotive(Q) supports PPAP) Standard
    Polarity N+N
    ESD Diodes (Y|N) Yes
    |VDS| (V) 20 V
    |VGS| (±V) 12 ±V
    |IDS| @TA = +25°C (A) 7.5 A
    PD @TA = +25°C (W) 1.65 W
    RDS(ON)Max@ VGS(4.5V)(mΩ) 15.5 mΩ
    RDS(ON)Max@ VGS(2.5V)(mΩ) 20 mΩ
    RDS(ON)Max@ VGS(1.8V)(mΩ) 30 mΩ
    |VGS(TH)| Min (V) 0.5 V
    |VGS(TH)| Max (V) 1.1 V
    QG Typ @ |VGS| = 4.5V (nC) 16 nC
    QG Typ @ |VGS| = 10V (nC) 37 nC
    CISS Typ (pF) 1550 pF
