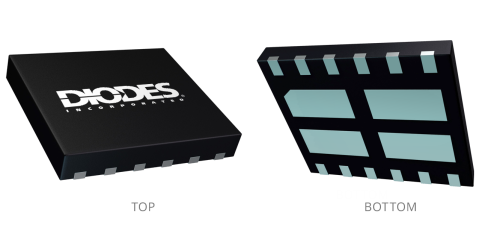

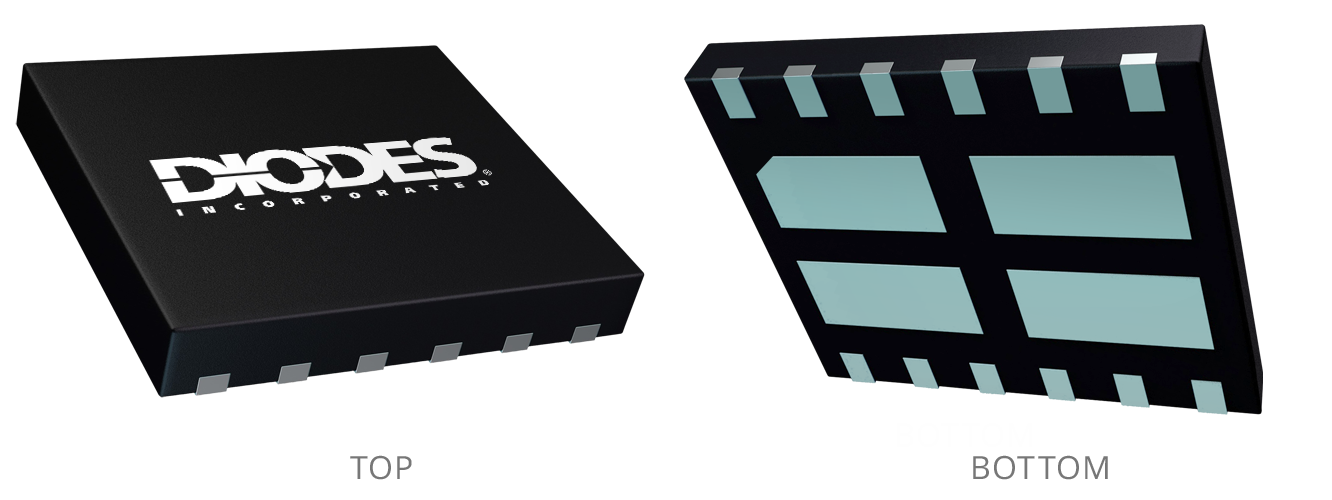

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. V-DFN5045-12
Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. V-DFN5045-12

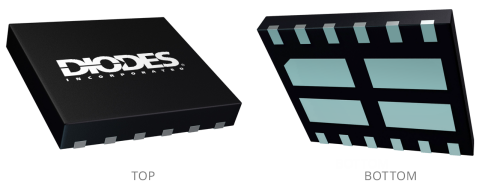

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. V-DFN5045-12
100V N-Channel Enhancement Mode MOSFET
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.
This new generation complementary MOSFET H-Bridge features low on-resistance achievable with low gate drive.
Compliance (Only Automotive Supports PPAP) |
Standard |
|---|---|
AEC Qualified |
No |
Polarity |
N |
ESD Diodes (Y|N) |
No |
|VDS| (V) |
100 V |
|VGS| (±V) |
20 ±V |
|IDS| @TA = +25°C (A) |
6 A |
PD @TA = +25°C (W) |
1.9 W |
RDS(ON)Max@ VGS(10V) (mΩ) |
33 mΩ |
RDS(ON)Max@ VGS(4.5V) (mΩ) |
50 mΩ |
|VGS(TH)| Max (V) |
2.5 V |
QG Typ @ |VGS| = 4.5V (nC) |
6.3 nC |
QG Typ @ |VGS| = 10V (nC) |
11.9 nC |
CISS Typ (pF) |
683 pF |
CISS Condition @|VDS| (V) |
50 V |
