  • Primarily Designed for Driving °C/s for Illumination, Signage and Backlighting Applications
  • Ideally Suited for Linear Mode Constant Current Applications
  • VBE Referenced Current Sink Circuit Includes: - N-Channel Enhancement Mode MOSFET (Q1) - Base Accessible Pre-Biased Transistor (Q2)
  • High Voltage Capable (50V)
  • Small Form Factor Surface Mount Package
  • High Dissipation Capability
  • Low Thermal Resistance
  • Lead Free By Design/RoHS Compliant
  • "Green" Device
  • Qualified to AEC-Q101 Standards for High Reliability
  • Product Specifications

    Product Parameters

    Qualified to AECQ10x No
    Automotive Compliant PPAP No
    Topology Linear LED Driver
    Minimum Supply Voltage N/A V
    Maximum Supply Voltage 50 V
    Maximum VOUT 50 V
    Number of Channels 1
    LED Current Sense Voltage 600 mV
    Output Current 1000 mA
    Channel Max. Output Current (mA) 1000
    Accuracy 10 %
    Dimming PWM
    Temperature Range -40 to 85 °C

    Related Content

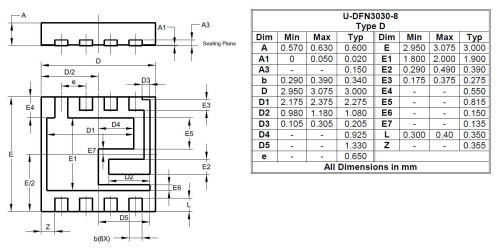

    U-DFN3030-8 (Type D)
