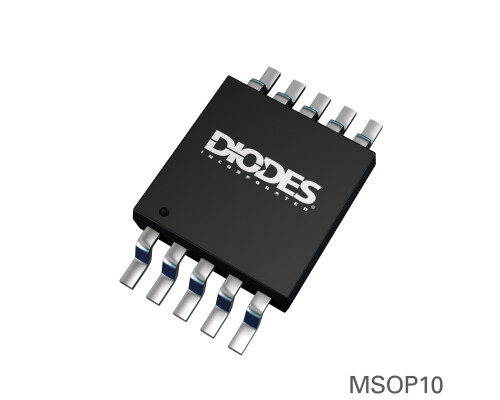

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

W DFN3030 10

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Half-Bridge Gate Drivers



Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


The DGD05463 is a high-frequency half-bridge gate driver capable of driving n-channel MOSFETs in a half-bridge configuration. The floating high-side driver is rated up to 50V.

The DGD05463 logic inputs are compatible with standard TTL and CMOS levels (down to 3.3V) to interface easily with MCUs. UVLO for high-side and low-side will protect a MOSFET with loss of supply. To protect MOSFETs, cross conduction prevention logic prevents the HO and LO outputs from being on at the same time.

Fast and well-matched propagation delays allow a higher switching frequency, which enable a smaller, more compact power switching design using smaller associated components. The DGD05463 is offered in the W-DFN3030-10 (Type TH) and MSOP-10 packages and operates over an extended -40°C to +125°C temperature range.


  • 50V Floating High-Side Driver
  • Drives Two N-Channel MOSFETs in a Half-Bridge Configuration
  • 5A Source / 2.5A Sink Output Current Capability
  • Internal Bootstrap Diode Included
  • Undervoltage Lockout for High-Side and Low-Side Drivers
  • Programmable Deadtime to Protect MOSFETs
  • Logic Input (IN and EN) 3.3V Capability
  • Ultra-Low Standby Currents (< 1µA)
  • Extended Temperature Range: -40°C to +125°C
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/


  • DC-DC converters
  • Motor controls
  • Battery-powered hand tools
  • eCig devices
  • Class-D power amplifiers

Product Specifications

Product Parameters

Offset Voltage Max (V) 50 V
Inputs IN, EN
Output Current IO+ (Typ) (mA) 1500 mA
Output Current IO- (Typ) (mA) 2500 mA
Internal Deadtime (Typ) 70 ns
tON (Typ) (ns) 96 ns
tOFF (Typ) (ns) 22 ns
tR (Typ) (ns) 17 ns
tF (Typ) (ns) 12 ns

Related Content



Technical Documents


Recommended Soldering Techniques


Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2645 2023-09-11 2023-12-11 Datasheet Revision Due to Maximum VBSUV+ and VCCUV+ Specification Limit Change
