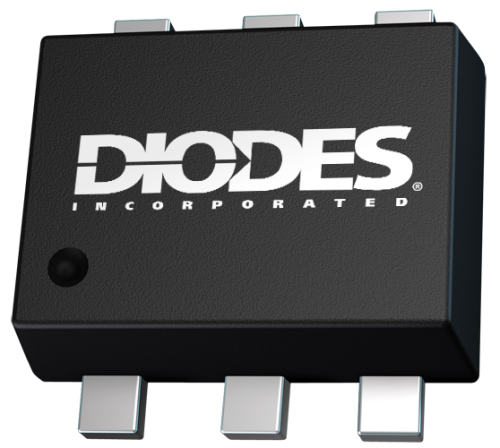

SOT563

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. SOT563

SOT563

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. SOT563

SOT563

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. SOT563

Back to Inactve Datasheet Archive

BSS84V (NRND)

NRND = Not Recommended for New Design

Dual P-CHANNEL ENHANCEMENT MODE MOSFET

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Specifications & Technical Documents

Product Parameters

CISS Typ (pF) 45 (max)
ESD Diodes (Y|N) No
Polarity P+P
QG Typ@ VGS = -10V N/A
QG Typ@ VGS = -4.5V (nC) N/A
AEC Qualified Yes
RDS(ON)Max@ VGS(4.5V)  (mΩ) 10000
|VDS| (V) 50
|VGS| (±V) 20
|VGS(TH)| Max (V) 2

Related Content

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2584 2022-05-19 2022-11-19 Device End of Life (EOL)
PCN-2561 2022-02-17 2022-08-17 Device End of Life (EOL)
PCN-2495 2021-03-31 2021-07-01 Qualification of Additional Assembly & Test Sites and Additional Wafer Back Grinding and Back Metal Process
