AZ431-A

ADJUSTABLE PRECISION SHUNT REGULATORS

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AZ431-A is a three-terminal adjustable shunt regulator with guaranteed thermal stability over a full operation range. It features sharp turn-on characteristics, low temperature coefficient and low output impedance, which make it ideal substitute for Zener diode in applications such as switching power supply, charger and other adjustable regulators. The output voltage of AZ431-A can be set to any value between VREF (2.5V) and the corresponding maximum cathode voltage (36V). The AZ431-A precision reference is offered in two voltage tolerance: 0.4% and 0.8%.

Application(s)

  • Charger
  • Voltage Adapter
  • Switching Power Supply
  • Graphic Card
  • Precision Voltage Reference

Feature(s)

  • Programmable Precise Output Voltage from 2.5V to 36V
  • High Stability under Capacitive Load
  • Low Temperature Deviation: 4.5mV Typical
  • Low Equivalent Full-range Temperature Coefficient with 20PPM/°C Typical
  • Sink Current Capacity from 1mA to 100mA
  • Low Output Noise
  • Wide Operating Range of -40 to 125°C

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
Qualified to AEC-Q10x No
ReferenceVoltage (V) 2.5 V
Accuracy (%) 0.8, 0.4 %
MaximumInput Voltage (V) 40 V
Sink Current (mA) 100 mA
Minimum Cathode Current for Regulation Typ (µA) 400 µA
Maximum Slope Resistance (Ω) 0.5 Ω
Operating Ambient Temperature Range (°C) -40 to 125 °C

Related Content

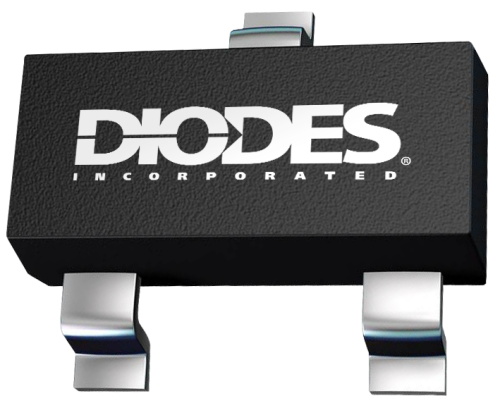

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Our shunt voltage regulator portfolio includes 2.5V, 1.24V, and 0.6V reference voltage devices covering consumer, computing, industrial, and automotive applications.

It includes industry standard TL431 and TL432 equivalents, as well as footprint compatible, very low minimum (knee) current for latest low standby power isolated power supplies. Additionally, it includes a well enhanced operating voltage range TLV431 (1.24V) equivalents. All of the 2.5V and 1.24V support operating temperatures up to 125°C as standard, therefore reducing the number of variants that need to be qualified and stocked.

Automotive-compliant variants are available which are qualified to AEC-Q100 Grade 1 in IATF 16949 facilities supporting PPAP documentation.

Orderable Part Number Buy from Distributor / Contact Sales Request Samples
AZ431AN-ATRE1

AZ431AN-ATRE1

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 30 9/21/2021 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
AZ431AN-ATRG1

AZ431AN-ATRG1

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Digi-Key Electronics 1690 9/21/2021 Europe, Asia, North America Buy Now
Mouser Electronics Inc. 2874 9/21/2021 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
AZ431AN-BTRG1

AZ431AN-BTRG1

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 2970 9/21/2021 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
AZ431AZ-AE1

AZ431AZ-AE1

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 5429 9/21/2021 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
AZ431AZ-ATRE1

AZ431AZ-ATRE1

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Arrow/Components Agent Ltd. 2926000 9/21/2021 Hong Kong Buy Now
Digi-Key Electronics 1644 9/21/2021 Europe, Asia, North America Buy Now
Mouser Electronics Inc. 4162 9/21/2021 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
AZ431AZ-ATRG1

AZ431AZ-ATRG1

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 1763 9/21/2021 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample
AZ431AZ-BTRE1

AZ431AZ-BTRE1

Authorized Distributor Quantity Inventory Date Countries/Regions Buy Online
Mouser Electronics Inc. 1966 9/21/2021 South America, North America, Asia, Europe, Middle East Buy Now
Request Sample

PCNs

Product Change Notices

PCN # Issue Date Implementation Date Subject
PCN-2331 2018-03-22 2018-06-22 Additional Qualified BOM (Bill of Materials) on Selected Devices
