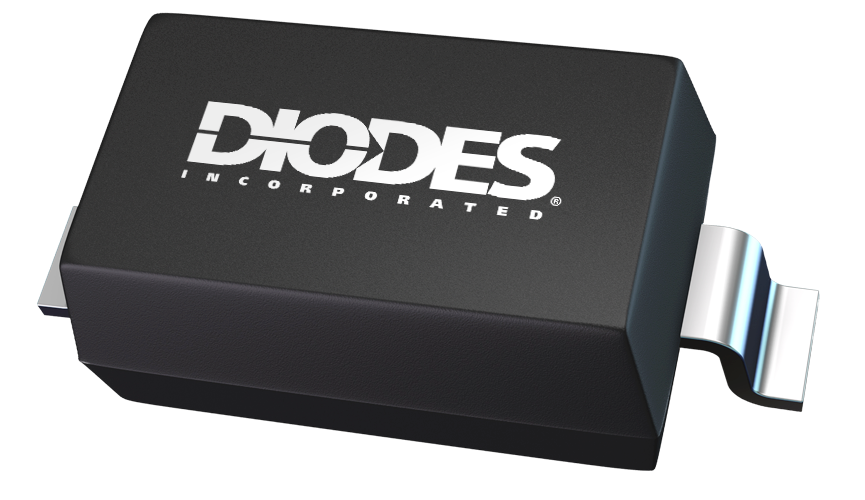

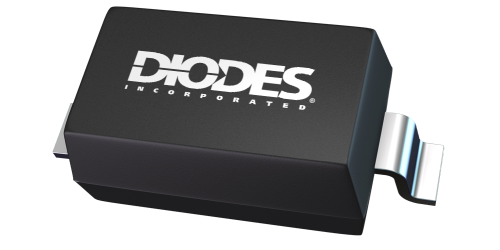

SOD123 3D image

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

APD240 (Obsolete)

Schottky

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Application(s)

  • Low Voltage High Frequency Inverters
  • DC-DC Converters
  • Free Wheeling
  • Polarity Protection

Product Specifications

Product Parameters

@ IF (A) 2
@ TerminalTemperature TT (ºC) N/A
@ VR (V) 40
Compliance (Only Automotive supports PPAP) No
Configuration Single
Forward VoltageDrop VF(V) 0.5
MaximumAverageRectifiedCurrent IO (A) 2
Maximum ReverseCurrent IR (µA) 500
Peak ForwardSurge CurrentIFSM(A) 50
Peak RepetitiveReverse VoltageVRRM (V) 40
AEC Qualified No
Reverse RecoveryTime trr (ns) N/A
TotalCapacitance CT (pF) 90

Related Content

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2300 2018-03-07 2018-06-07 Qualification of Additional Assembly and Test Sites
