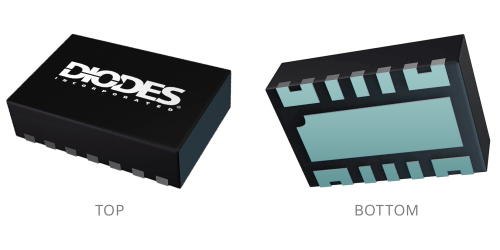

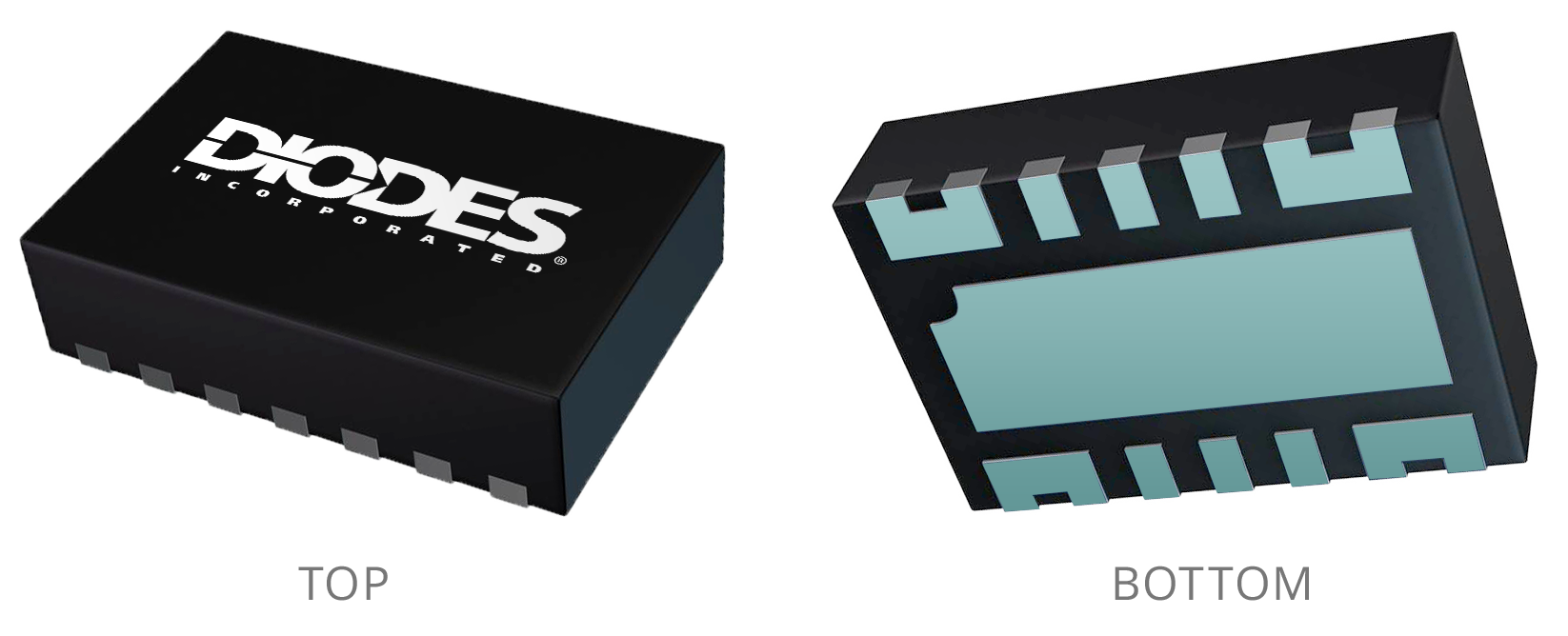

V DFN3020 14

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Power Switches

AP22966

5V Dual Channel Programmable Load Switch

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

AP22966 is an integrated dual N-channel load switch which features an adjustable slew rate that can be set using an external capacitor independently for each channel. The N-Channel MOSFETs have a typical RON of 18mΩ, enabling current handling capability of up to 6A. Both channels can independently be controlled with low voltage logic signals.

AP22966 is designed to operate from 0.8V to 5.5V. The low quiescent supply current makes it ideal for use in battery powered distribution systems where power consumption is a concern.

AP22966 is available in a standard Green V-DFN3020-14 package with exposed PAD for improved thermal performance and is RoHS compliant.

Feature(s)

  • Integrated Dual Channel Load Switch
  • 0.8V to 5.5V Input Voltage Range
  • Low Typical RON of 18mΩ (VBIAS = 5V)
  • 6A Maximum Continuous Current per Channel
  • Very Low Quiescent Current
    • 60μA (Both Channels)
    • 45μA (Single Channel)
  • Per Channel Adjustable Slew Rate
  • Internal Quick Output Discharge (QOD)
  • Low Voltage Logic Enable
    • 1.2/1.8/2.5/3.3V Logic
  • Small Form Factor Package V-DFN3020-14
    • – footprint of just 6mm2
  • Thermally Efficient Low Profile Package
  • Totally Lead-Free & Fully RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Ultrabooks
  • Notebooks
  • Netbooks
  • SetTop Boxes
  • SSD (Solid State Drives)
  • Consumer Electronics
  • Tablet PC
  • Telecom Systems

Product Specifications

Product Parameters

Type Load Switch
AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Maximum Continuous Output Current (A) 6
(MAX) Maximum Current Limit Fixed (A) Not Limited
Channels 2
Enable Logic Active High
Minimum Operating Voltage (V) 0.8
Maximum Operating Voltage (V) 5.5
Quiescent Current Typ (µA) 45
RDS(ON) (VIN = 5V) Typ (mΩ) 17
Reverse Current Block No
Minimum Power Supply Voltage (V) 0.8
Maximum Power Supply Voltage (V) 5.5
Output Discharge Yes
(TYP) Output Rise Time mS Adjustable
OCP Flag No
Power Good No
Operating Ambient Temperature Range (°C) -40 to 85
Overtemperature Protection Yes
UL Certificate No

Related Content

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
