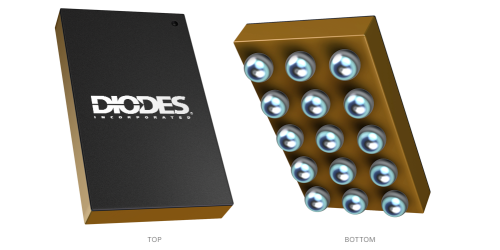

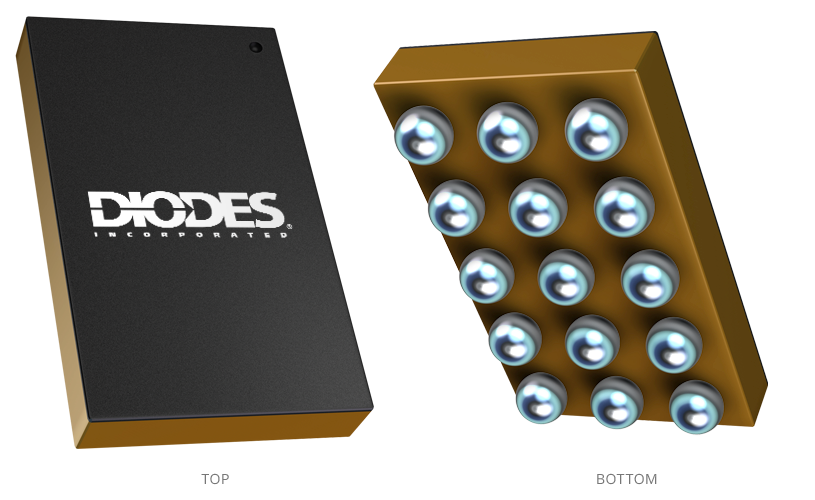

U WLB2515 15 3D image

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. U-WLB2515-15

U WLB2515 15 3D image

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. U-WLB2515-15

U WLB2515 15 3D image

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. U-WLB2515-15

Back to 電源切換器

AP22950

High-Voltage USB PD VBUS Sink Path Power Switch

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AP22950 is a uni-directional high-voltage power switch for USB PD featuring undervoltage lockout, overvoltage lockout, reverse current protection and overtemperature protection circuits.

The AP22950 features a low 30mΩ on-resistance and operates from 2.5V to 22.5V VBUS input voltage.

The reverse current protection features isolation from higher VINT than VBUS that allows supplying internal system power node from the highest voltage from multiple AP22950 that are connected together, which is suitable for portable devices that have multiple power inputs.

The AP22950 offers default 23V overvoltage protection threshold by default without resistor on OVLO and the threshold is adjustable from 4.0V to 23V by external resistor on OVLO pin. ACKb pin can be VBUS voltage status indicator.

The AP22950 is available in the U-WLB2515-15 package.

Feature(s)

  • Wide Input-Voltage Range from 2.5V to 22.5V Complies with SPR (Standard Power Rating) Requirement of USB PD 3.X
  • ISW Maximum 5A Continuous Current
  • 29V Tolerance on Both VBUS and VINT Pin
  • 30mΩ Low ON Resistance
  • Adjustable VBUS Overvoltage Protection Threshold
  • Slew Rate Control for Inrush Current Limit
  • Protection Features:
    • Thermal Shutdown (Overtemperature Protection)
    • Overvoltage Protection
    • Undervoltage Lockout
    • Reverse Current Protection
  • Surge/ESD Protection:
    • IEC61000-4-5 Exceeds ±100V on VBUS Without Capacitor
    • IEC61000-4-5 Exceeds ±110V on VBUS with 22µF Capacitor
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Application(s)

  • Laptops and accessories
  • Smartphones, tablet PCs
  • Portable speakers, wearable devices

Specifications & Technical Documents

Product Parameters

Type Load Switch
AEC Qualified No
Compliance (Only Automotive Supports PPAP) Standard
Quiescent Current Typ (μA) 70
Maximum Continuous Output Current (A) 5
(MAX) Maximum Current Limit Fixed (A) N/A
Channels 1
Enable Logic Low
Minimum Operating Voltage (V) 2.5
Maximum Operating Voltage (V) 22.5
RDS(ON) (VIN = 5V) Typ (mΩ) 30
Reverse Current Block Yes
Output Discharge No
(TYP) Output Rise Time mS 3.4
Power Good Yes
UL Certificate No
