AP2142A

Description

The AP2142A and AP2152A are dual channel current-limited integrated high-side power switches optimized for Universal Serial Bus (USB) and other hot-swap applications. The family of devices complies with USB standards and available with both polarities of Enable input. The devices have fast short-circuit response time for improved overall system robustness, and have integrated output discharge function to ensure completely control°C discharging of the output voltage capacitor. They provide a complete protection solution for application subject to heavy capacitive loads and the prospect of short circuit, and offer reverse current blocking, over-current, over-temperature and short-circuit protection, as well as control°C rise time and under-voltage lockout functionality. A 7ms deglitch capability on the open-drain Flag output prevents false over-current reporting and does not require any external components. All devices are available in SO-8, MSOP-8-EP and DFN3030E-8 packages.

Feature(s)

Dual channel current-limited power switch with output discharge

Fast short-circuit response time: 2μs

0.7A accurate current limiting

Reverse Current Blocking

85mΩ on-resistance

Input voltage range: 2.7V – 5.5V

Built-in soft-start with 0.6ms typical rise time

Short circuit and thermal protection

Fault report (FLG) with blanking time (7ms typ)

ESD protection: 2KV HBM, 300V MM

Active high (AP2152A) or active low (AP2142A) enable

Ambient temperature range: -40°C to 85°C

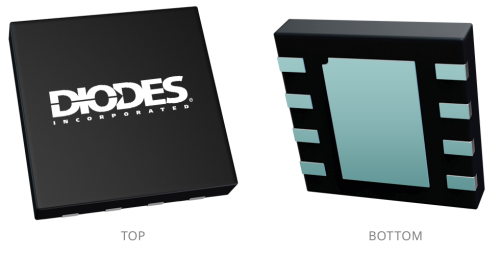

SO-8, MSOP-8-EP and DFN3030E-8 (Exposed Pad): Available in “Green” Molding Compound (No Br, Sb)

Lead Free Finish/ RoHS Compliant

UL Recognized, File Number E322375

IEC60950-1 CB Scheme Certified

Application(s)

LCD TVs & Monitors

Set-Top-Boxes, Residential Gateways

Laptops, Desktops, Servers,

Printers, Docking Stations, HUBs
