MSOP-8EP

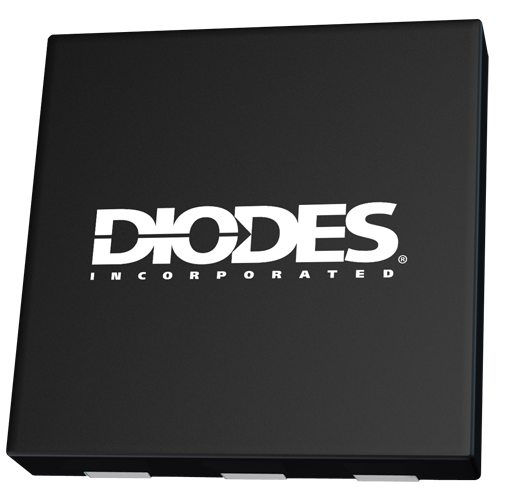

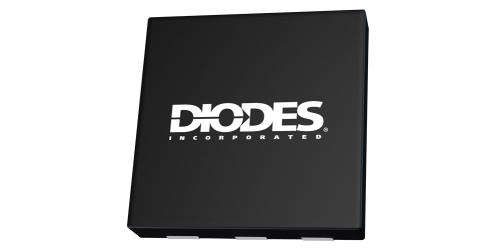

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Linear LED Drivers

AL5811

60V, LINEAR 75mA ADJUSTABLE CURRENT LED DRIVER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The AL5811 is an adjustable Linear LED driver offering excellent temperature stability and output handling capability. The AL5811 simplifies the design of linear and isolated or non-isolated LED drivers by setting the LED current with standard value resistors. The AL5811 has an open drain output that can swing from 1V up to 60V enabling it drive long LED chains. Its low 0.5V RSET pin is outside of the LED current path and so accuracy is maintained while minimizing the required overheads to regulate the LED current. This reduces its power dissipation when compared to traditional linear LED drivers. This makes it ideal for driving LEDs up to 75mA (commonly referred to as 1/4W LEDs). Longer LED chains can be driven by tapping VCC from the chain, where the chain voltage may exceed 60V. The AL5811 is available in the exposed pad MSOP-8EP and U-DFN3030-6 packages.

Feature(s)

  • Low Reference Voltage (VRSET = 0.5V)
  • -40°C to +125°C Temperature Range
  • ±6% Typical LED Current Tolerance
  • Low Temperature Drift
  • 1V to 60V Open-Drain Output
  • High Power Supply Rejection
  • MSOP-8EP and U-DFN3030-6: Available in “Green” Molding Compound (No Br, Sb)

Application(s)

  • Isolated Offline LED Converters
  • Linear LED Driver
  • LED Signs
  • Instrumentation Illumination
  • Automotive Interior Lamps

Product Specifications

Product Parameters

AEC Qualified No
Compliance (Only Automotive supports PPAP) Standard
Topology Linear LED Driver
Minimum Supply Voltage (V) 3.5 V
Maximum Supply Voltage (V) 60 V
Maximum VOUT (V) 60 V
Number of Channels 1
LED Current Sense Voltage (mV) N/A mV
Output Current (mA) ADJ mA
Channel Max. Output Current (mA) 10 to 75 mA
Accuracy (%) 6 %
Dimming Ext PWM
Temperature Range (°C) -40 to 125 °C

Related Content

Packages

Technical Documents

Evaluation Boards and User Guides

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
