74LV05A

Hex Inverters

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The 74LV05A provides provides six independent inverters with open drain outputs. The device is designed for operation with a power supply range of 2.0V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.

Application(s)

  • General Purpose Logic
  • Power Down Signal Isolation
  • Wide array of products such as:
    • PCs, networking, notebooks, ultrabooks, netbooks
    • Computer peripherals, hard drives, CD/DVD ROM
    • TV, DVD, DVR, set top box

Product Specifications

Product Parameters

Number of Gates 6
Family LV
VCC Min (V) 2 V
VCC Maximum Rating 5.5 V
tpd max @ (1.5V) - ns
tpd max @ 1.8V (ns) - ns
tpd max @ 2.5V (ns) 16.6 ns
tpd max @ 3.3V (ns) 10.6 ns
tpd max @ 5.0V (ns) 7.5 ns
Input/ Output Current 12
Description HEX 1 Input Inverter
Output Type Open-Drain

Related Content

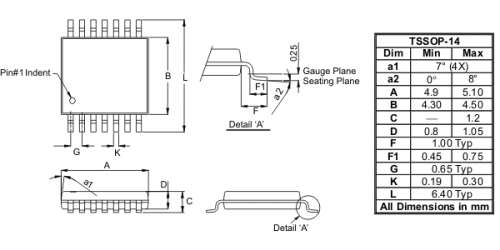

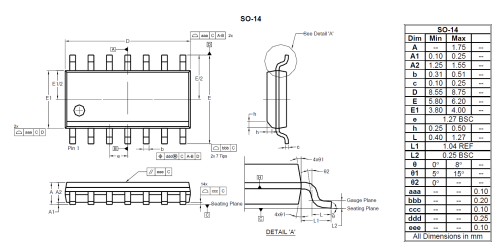

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2512 2021-04-16 2021-07-16 Qualified Additional Assembly & Test (A/T) Site
