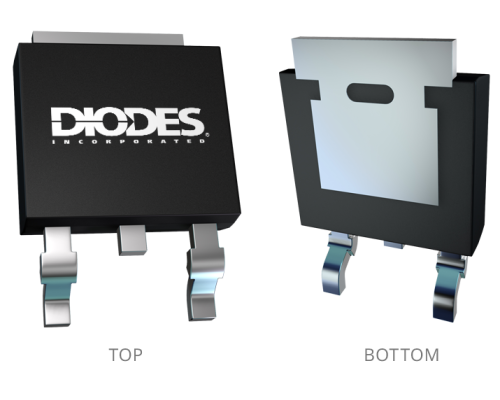

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. TO252 (DPAK)

Back to ZXTR1005PD8

ZXTR1005PD8

100V INPUT, 5V 50mA REGULATOR TRANSISTOR

Datasheet

Contact Sales

Description

The ZXTR1005PD8 is a high voltage regulator with fixed output voltage of 5V ± 2% and a 50mA drive capability. It is designed for use in high voltage applications where standard linear regulators cannot be used. This function is fully integrated into a PowerDI5060 package, minimizing PCB area and reducing number of components when compared with a multi-chip discrete solution.

The device also features an enable pin which disables the regulator when pulled low.

Application(s)

Supply voltage regulation in:

Networking
Telecom
Power Over Ethernet (PoE)

Specifications & Technical Documents

Product Parameters

Iq (typ) (µA)	270
Operating Ambient Temperature (°C)	-40 to 125
AEC Qualified	No
Compliance (Only Automotive Supports PPAP)	Standard
Type	Linear Regulator
Output options	Fixed
Iout (A)	0.05
Vin (Max) (V)	100
Fixed Vout (V)	5
VDROPOUT (Max) (V) at Max Current and Max Ouput Voltage	5
PSRR (dB) 1kHz	45
Enable Active	No
Channels	1
Output Discharge	No
Power Good	No
Reverse Protection	No
VCTL Function	No

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2770	2025-10-30	2025-10-30	Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products
