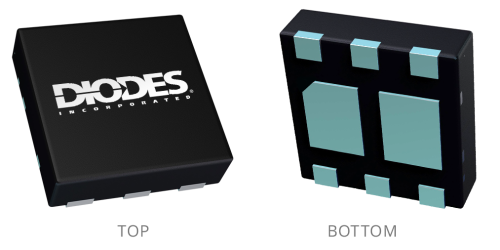

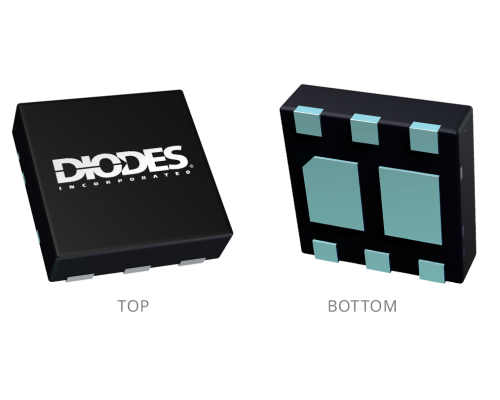

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Transistor (BJT) Master Table

ZXTP56060FDBQ

Dual PNP, 60V, 2A, DFN2020-6 (SWP)

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Product Specifications

Product Parameters

Category Low Saturation Transistor
Compliance(Only Automotive supports PPAP) Automotive
Polarity PNP + PNP
VCEO, VCES (V) 60
IC (A) 2
ICM (A) 3
PD (W) 2.47
hFE (Min) 170
hFE (@ IC) (A) 0.1
hFE(Min 2) 110
hFE (@ IC2) (A) 1
VCE(sat) Max (mV) 120
VCE(SAT) (@ IC/IB) (A/mA) 0.5/50
VCE(sat) (Max.2) (mV) 420
VCE(sat) (@ IC/IB2) (A/mA) 0.7/7
fT (MHz) N/A
RCE(sat) (mΩ) 250
