ZXTP56020FDBQ

Dual PNP, 20V, 2A, DFN2020-6 (SWP)

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Application(s)

  • Matrix LED Lighting
  • Power Management

Feature(s)

  • BVCEO > -20V
  • IC = -2A High Continuous Collector Current
  • RCE(SAT) = 100mΩ for a Low Equivalent On-Resistance
  • Low Saturation Voltage VCE(SAT) < -150mV @ -1A
  • Sidewall Tin Plating for Wettable Flanks in AOI
  • PD up to 2.47W for Power Demanding Applications
  • Low Profile 0.6mm High Package for Thin Applications

Product Specifications

Product Parameters

Category Low Saturation Transistor
Compliance Automotive
Polarity PNP + PNP
VCEO, VCES (V) 20
IC (A) 2
ICM (A) 3
PD (W) 2.47
hFE (Min) 250
hFE (@ IC) (A) 0.1
hFE (Min 2) 160
hFE (@ IC2) (A) 1
VCE(sat) Max (mV) 110
VCE(SAT) (@ IC/IB) (A/mA) 0.5/50
VCE(sat) (Max.2) (mV) 200
VCE(sat) (@ IC/IB2) (A/mA) 0.7/7
fT (MHz) N/A
RCE(sat) (m?) 220

Related Content

Packages

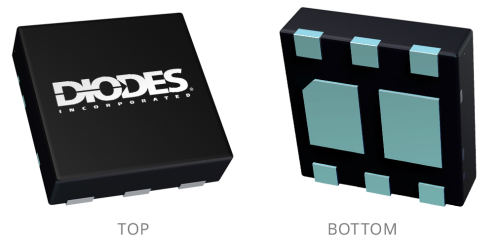

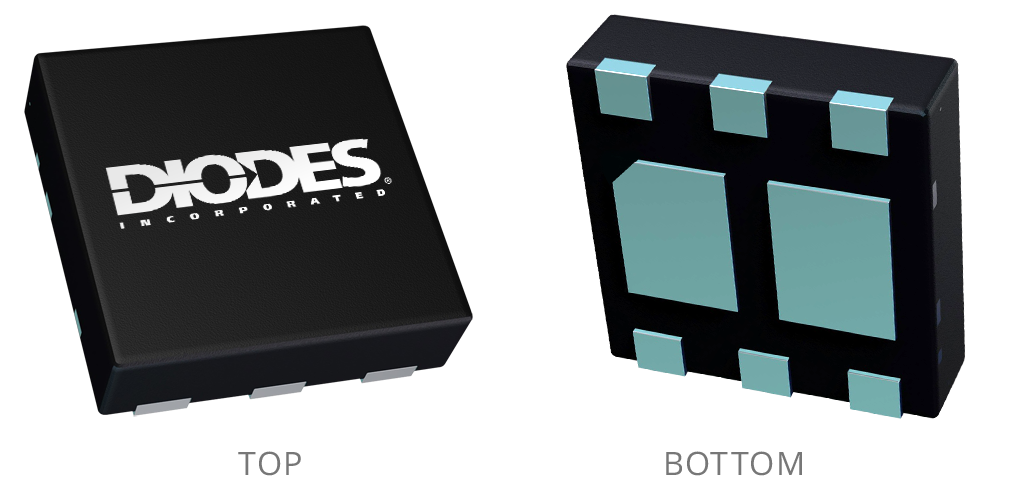

U-DFN2020-6 (SWP) (Type A)

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Orderable Part Number Buy from Distributor / Contact Sales Request Samples
ZXTP56020FDBQ-7

ZXTP56020FDBQ-7
