ZXTP558L (Obsolete)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

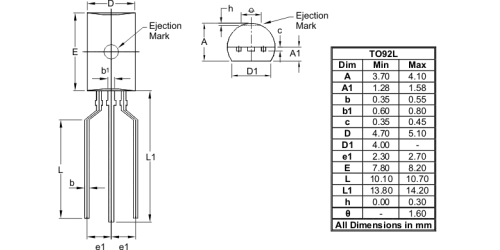

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) No
Category High Voltage Transistor
Compliance(Only Automotive supports PPAP) Catalog
fT (MHz) 50
fT (MHz) 50
hFE (min) 100
hFE(@ IC) 0.001
hFE (@ IC) (A) 0.001
hFE(@ IC2) 0.05
hFE (@ IC2) (A) 0.05
hFE(Min 2) 100
hFE (Min) 100
IC (A) 0.2
IC (A) 0.2
ICM (A) 0.5
ICM (A) 0.5
PD (W) 1
PD (W) 1
Polarity PNP
Product Type PNP
AEC Qualified Yes
RCE(sat) (mΩ) -
VCE (SAT) (@ IC/IB2) (A/mA) 0.05/6
VCE (SAT)(Max.2) 500
VCE (SAT)Max (mV) 200
VCE(SAT) (@ IC/IB) (A/mA) 0.02/2
VCE(sat) (@ IC/IB2) (A/mA) 0.05/6
VCE(sat) (Max.2) (mV) 500
VCE(sat) Max (mV) 200
VCEO, VCES (V) 400
VCEO, VCES (V) 400
