ZXTN19060CG

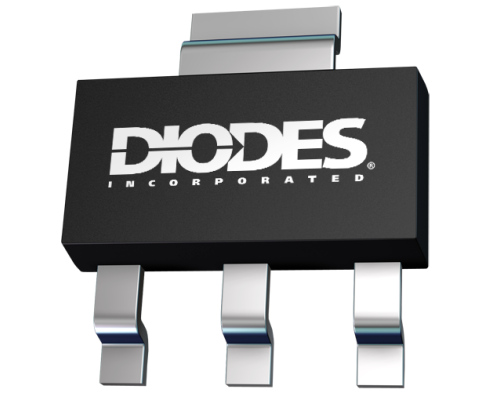

NPN, 60V, 7A, SOT223

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

Packaged in the SOT223 outline this new low saturation NPN transistor offers extremely low on state losses making it ideal for use in DC-DC circuits and various driving and power management functions.

Application(s)

  • Motor drive
  • Lamp, relay and solenoid drive
  • Product Specifications

    Product Parameters

    Category Low Saturation Transistor
    Compliance(Only Automotive supports PPAP) Standard
    Polarity NPN
    VCEO, VCES (V) 60
    IC (A) 7
    ICM (A) 12
    PD (W) 3
    hFE (Min) 200
    hFE (@ IC) (A) 0.1
    hFE(Min 2) 25
    hFE (@ IC2) (A) 7
    VCE(sat) Max (mV) 155
    VCE(SAT) (@ IC/IB) (A/mA) 1/10
    VCE(sat) (Max.2) (mV) 150
    VCE(sat) (@ IC/IB2) (A/mA) 2/40
    fT (MHz) 130
    RCE(sat) (mΩ) 30

    Related Content

    Packages

    Technical Documents

    SPICE Model

    Recommended Soldering Techniques

    TN1.pdf

    RoHS CofC

    Product Change Notices (PCNs)

    A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

    PCN # Issue Date Implementation Date Subject
    PCN-2305 2018-02-28 2018-05-28 Addition of A Passivation Layer Over The Top Metal of The Die for Selected BJT Devices
