US1M(LS) (Obsolete)

1.0A SURFACE MOUNT ULTRA FAST RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Feature(s)

  • Glass passivated chip
  • Ultra-fast switching for high efficiency
  • Low forward voltage drop and high current capability
  • Low reverse leakage current
  • Qualified according AEC-Q101 Rev_C
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Specifications & Technical Documents

Product Parameters

AEC Qualified

No

Compliance (Only Automotive Supports PPAP)

Standard

Product Type

Super Fast(Fast) Recovery Rectifier & Super Fast(Fast) Recovery Bridge

Configuration

Single

MaximumAverageRectifiedCurrent IO (A)

1 A

Maximum Peak Forward Surge Current IFSM (A)

30 A

Peak RepetitiveReverse VoltageVRRM (V)

1000 V

Forward VoltageDrop VF(V)

1.7 V

@ IF (A)

1 A

Maximum ReverseCurrent IR (µA)

5 µA

@ VR (V)

1000 V

Reverse RecoveryTime trr (ns)

75 ns

Related Content

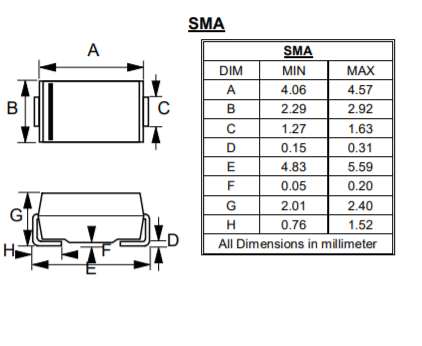

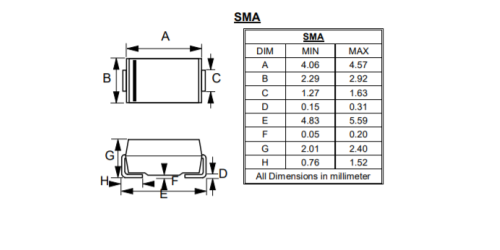

Packages

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2549 2021-10-19 2022-04-19 Device End of Life (EOL)
