US1KSAFS

1.0A SURFACE MOUNT ULTRA-FAST RECTIFIER

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

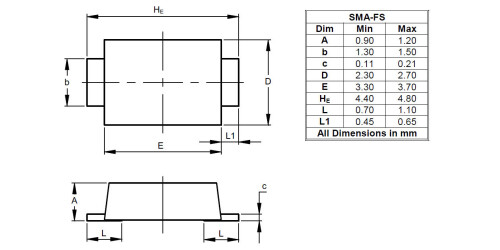

The US1KSAFS is a rectifier packaged in the SMA-FS. Providing ultra-fast recovery time for high efficiency.

Feature(s)

  • Glass Passivated Die Construction
  • Ideally Suited for Use in Very High Frequency Switching
  • Ultra-Fast Recovery Time for High Efficiency
  • Soft Recovery Characteristics
  • Surge Overload Rating to 30A Peak
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Power Supply
  • Smartphone Chargers
  • Inverters
  • Free Wheeling Diodes

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
AEC Qualified No
Product Type ULTRA-FAST RECOVERY RECTIFIER
Configuration Single
MaximumAverageRectifiedCurrent IO (A) 1 A
Maximum Peak Forward Surge Current IFSM (A) 30 A
Peak RepetitiveReverse VoltageVRRM (V) 800 V
Forward VoltageDrop VF(V) 1.85 V
@ IF (A) 1 A
Maximum ReverseCurrent IR (µA) 5 µA
@ VR (V) 800 V
Reverse RecoveryTime trr (ns) 75 ns
TotalCapacitance CT (pF) 17 pF

Related Content

Packages

Applications

Technical Documents

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2337 2018-06-04 2018-05-04 Qualification of Additional Wafer Sources and Additional Assembly and Test Sites for Select Products
