UD7G(LS)

Specifications & Technical Documents

Product Parameters

AEC Qualified	No
Compliance (Only Automotive Supports PPAP)	Standard
Product Type	Super Fast(Fast) Recovery Rectifier & Super Fast(Fast) Recovery Bridge
Configuration	Single
MaximumAverageRectifiedCurrent IO (A)	1 A
Maximum Peak Forward Surge Current IFSM (A)	30 A
Peak RepetitiveReverse VoltageVRRM (V)	1000 V
Forward VoltageDrop VF(V)	1.7 V
@ IF (A)	1 A
Maximum ReverseCurrent IR (µA)	5 µA
@ VR (V)	1000 V
Reverse RecoveryTime trr (ns)	75 ns

Related Content

Packages

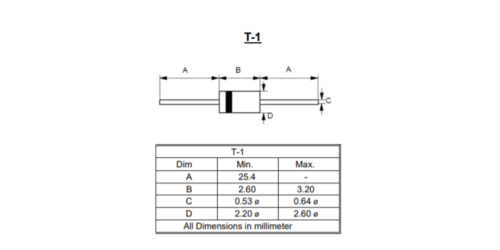

T-1 (LSC)

T-1

---

Technical Documents

Recommended Soldering Techniques

TN1.pdf
