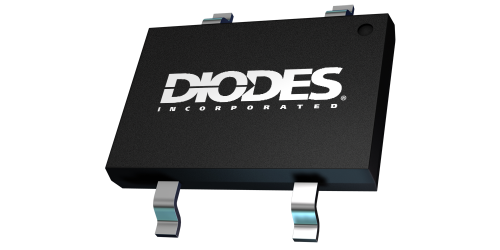

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

TT410 (Not Recommended for new design)

NRND = Not Recommended for New Design

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

  • AC-DC Power Supply
  • LED Lighting
  • Adapter
  • Battery Charger
  • Home Appliances
  • Office Equipment
  • Telecommunication Applications

Application(s)

  • Glass Passivated Die Construction
  • Compact, Thin Profile Package Design
  • Reliable Robust Construction
  • Ideal for SMT Manufacturing
  • Rated at 1000V PRV
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) No
Forward VoltageDrop VF(V) 1
MaximumAverageRectifiedCurrent IO (A) 4
Maximum Peak Forward Surge Current IFSM (A) 120
Maximum ReverseCurrent IR (µA) 5
Peak RepetitiveReverse VoltageVRRM (V) 1000
AEC Qualified No
TotalCapacitance CT (pF) 40

Related Content

Packages

Applications

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2631 2023-11-07 2024-02-07 Transfer of Wafer Manufacturing Site for Select Discrete Products
