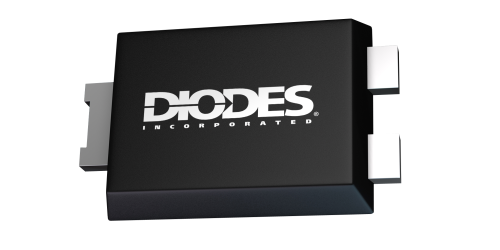

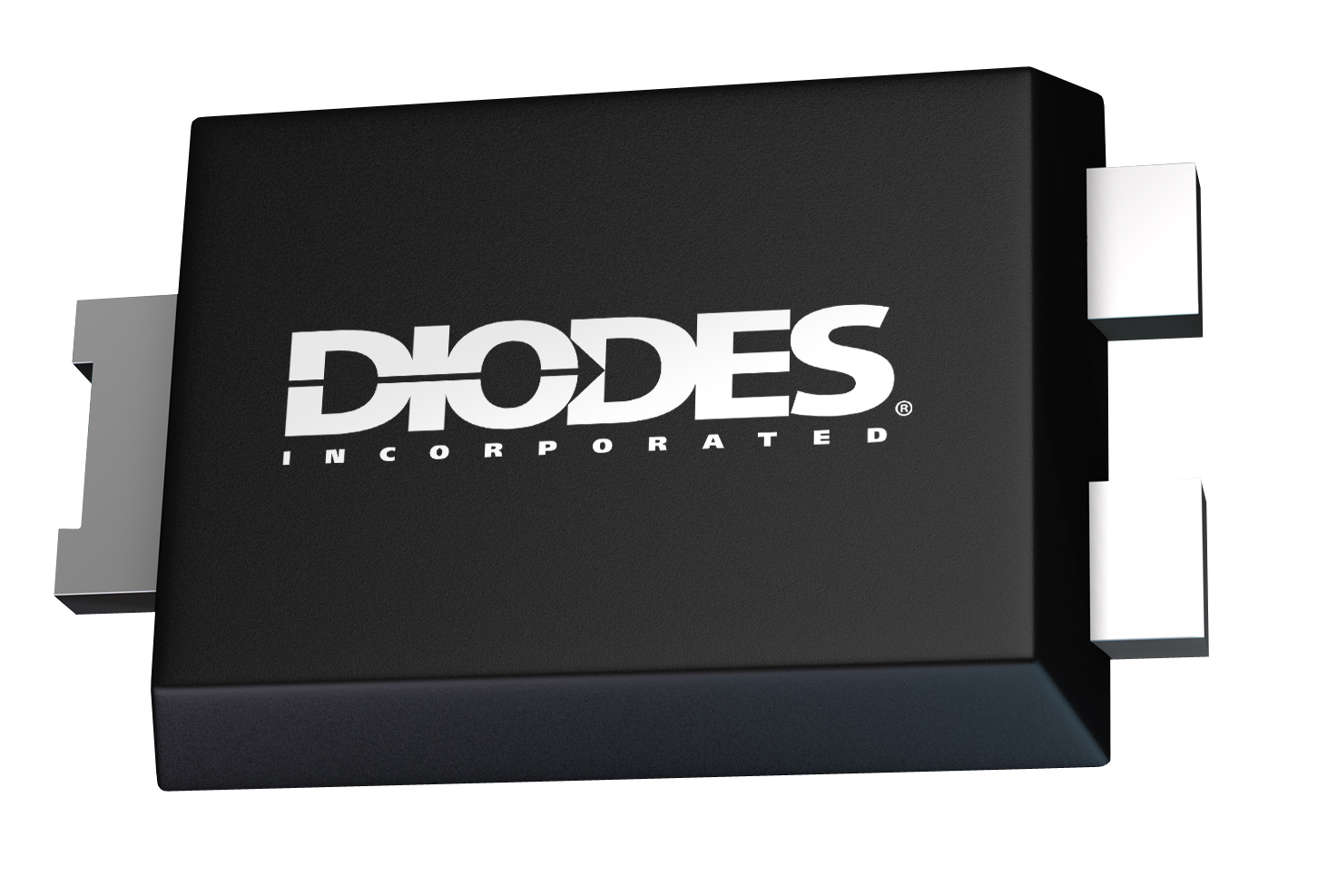

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to Inactve Datasheet Archive

SDM8M100P5 (Not Recommended for new design)

NRND = Not Recommended for New Design

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

The SDM8M100P5 is a single rectifier packaged in PowerDI5, offering low VF and excellent high temperature stability.

Feature(s)

  • Low Forward Voltage Drop
  • Excellent High Temperature Stability
  • Soft, Fast Switching Capability
  • +175°C Operating Junction Temperature
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

Application(s)

  • Polarity Protection Diode
  • Re-Circulating Diode
  • Switching Diode

Product Specifications

Product Parameters

@ IF (A) 8
@ TerminalTemperature TT (ºC) N/A
@ VR (V) 100
Compliance (Only Automotive supports PPAP) No
Configuration Single
Forward VoltageDrop VF(V) 0.85
MaximumAverageRectifiedCurrent IO (A) 8
Maximum ReverseCurrent IR (µA) 1.5
Peak ForwardSurge CurrentIFSM(A) 160
Peak RepetitiveReverse VoltageVRRM (V) 100
AEC Qualified No
Reverse RecoveryTime trr (ns) N/A
TotalCapacitance CT (pF) 168
