1A SCHOTTKY BARRIER RECTIFER CHIP SCALE PACKAGE
Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

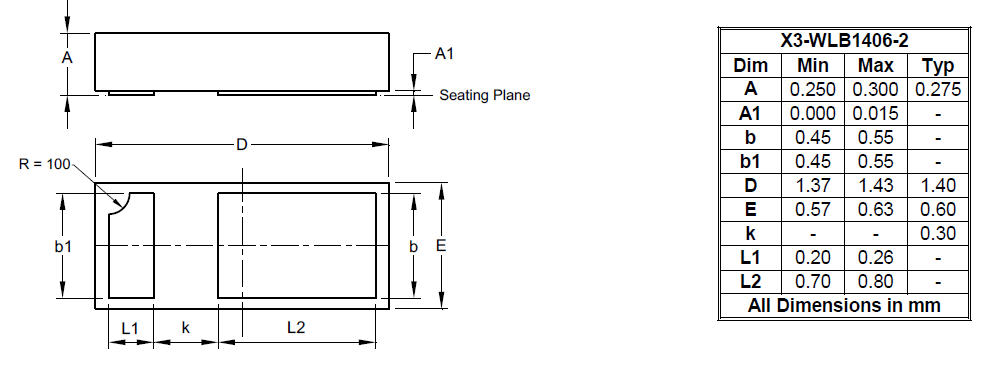

The SDM1U40CSP is a 40-volt 1A Schottky Barrier Rectifier that is optimized for low forward voltage drop and low leakage current. Housed in a compact chip scale package (CSP), the SDM1U40SCP occupies only 0.84 mm2 board-space with low profile. The low thermal resistance enables designers to meet design challenges of increasing efficiency whilst at the same time reducing board space
| Compliance (Only Automotive Supports PPAP) | Standard |
|---|---|
| AEC Qualified | No |
| Configuration | Single |
| MaximumAverageRectifiedCurrent IO (A) | 1 A |
| @ TerminalTemperature TT (ºC) | N/A ºC |
| Peak RepetitiveReverse VoltageVRRM (V) | 40 V |
| Peak ForwardSurge CurrentIFSM(A) | 18 A |
| Forward VoltageDrop VF(V) | 0.48 V |
| @ IF (A) | 1 A |
| Maximum ReverseCurrent IR (µA) | 100 µA |
| @ VR (V) | 40 V |
| TotalCapacitance CT (pF) | 58 pF |
Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.
A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.
| PCN # | Issue Date | Implementation Date | Subject |
|---|---|---|---|
| PCN-2560 | 2021-12-16 | 2021-12-16 | Additional Wafer Source (GFAB) and Additional Assembly and Test Site (SAT) |
