SDM1L30BLP (Obsolete)

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

Description

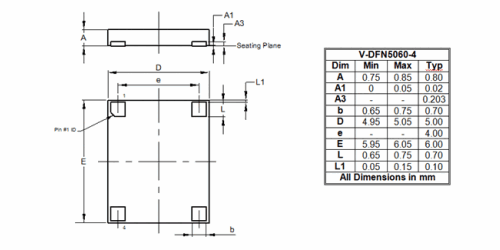

Packaged in the compact DFN5060-4 the SDM1L30BLP has been designed with low forward voltage and soft switching characteristics to meet the needs of wireless charging applications.

Product Specifications

Product Parameters

@ IF (A) 1
@ TerminalTemperature TT (ºC) N/A
@ VR (V) 30
Compliance (Only Automotive supports PPAP) On Request
Configuration Bridge
Forward VoltageDrop VF(V) 0.42
MaximumAverageRectifiedCurrent IO (A) 1
Maximum Peak Forward Surge Current IFSM (A) 50
Maximum ReverseCurrent IR (µA) 1000
Peak ForwardSurge CurrentIFSM(A) 50
Peak RepetitiveReverse VoltageVRRM (V) 30
AEC Qualified Yes
Reverse RecoveryTime trr (ns) N/A
TotalCapacitance CT (pF) 90

Related Content

Packages

Technical Documents

SPICE Model

Recommended Soldering Techniques

TN1.pdf

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN # Issue Date Implementation Date Subject
PCN-2418 2019-11-07 2020-05-07 Device End of Life (EOL)
