SBR3U60SLDQ

3.0A SBR DUAL ISOLATED SUPER BARRIER RECTIFIER

Datasheet

Contact Sales

Description

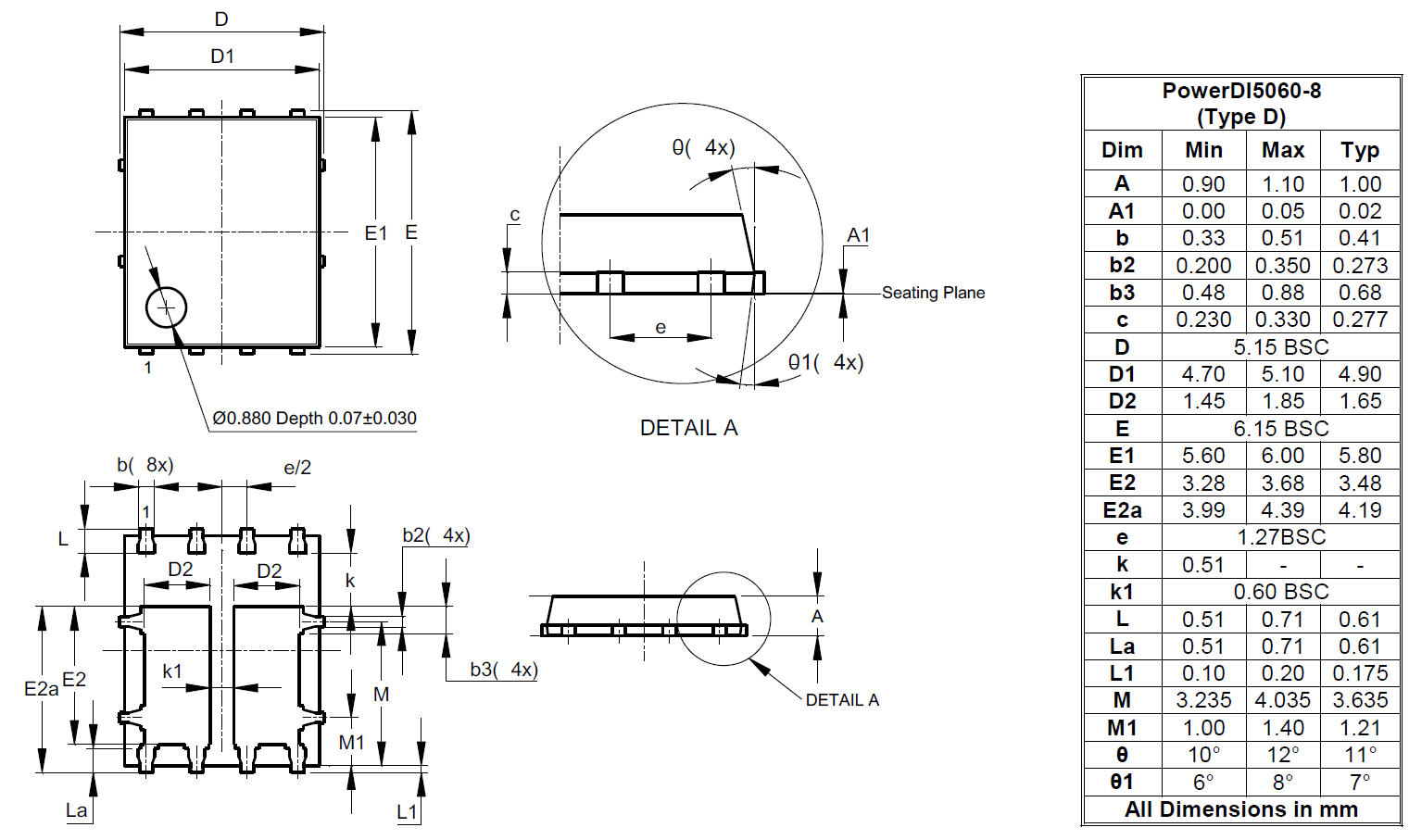

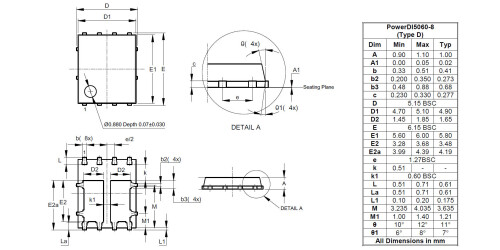

The SBR3U60SLDQ has two independent 3A, 60V rectifiers in one PowerDI®5060-8 (Type D) package.

Feature(s)

Very Low Forward Voltage Drop
Excellent High-Temperature Stability
Patented SBR® technology provides a superior avalanche capability than Schottky diodes ensuring more rugged and reliable end applications
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability PPAP Capable (Note 4)

Application(s)

Offering low leakage at high temperatures and low forward voltage, this device is ideal for use in the following applications:

Bridge Diodes
Freewheeling Diodes
Blocking Diodes
Reverse Protection Diodes

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Automotive
@ TerminalTemperature TT (ºC)	-
AEC Qualified	Yes
Configuration	Dual
Maximum Average Rectified Current IO (A)	3
Peak Repetitive Reverse Voltage VRRM (V)	60
Peak Forward Surge Current IFSM (A)	60
Forward VoltageDrop V_F(V)	0.6
@ IF (A)	3
Maximum Reverse Current IR (μA)	100
@ VR (V)	60
Total Capacitance CT (pF)	110

Technical Documents

Recommended Soldering Techniques

TN1.pdf

RoHS CofC

RoHSFile

Purchase & Availability

Something went wrong with your request. Please try again later. If this problem continues, please contact Diodes support for assistance.

Product Change Notices (PCNs)

A PCN may only apply to specific orderable part numbers in this datasheet. Please refer to the corresponding PCN to see the exact orderable part number(s) affected.

PCN #	Issue Date	Implementation Date	Subject
PCN-2770	2025-10-30	2025-10-30	Add Fab Site Code, Country of Diffusion (COD) and Assembly Site Origin (ASO) on Product and Shipping Labels for all Diodes Products
