SBR1M100BLP

1A SBR BRIDGE
SUPER BARRIER RECTIFIER

Datasheet

Contact Sales

Description

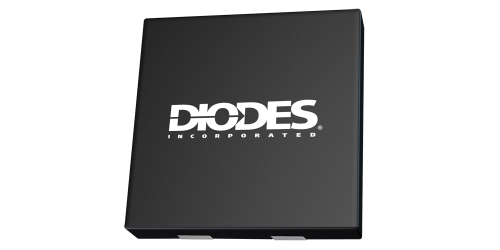

The DIODES™ SBR1M100BLP has four diodes in full bridge configuration packaged in the low profile U-DFN3030-4 package. Offering low forward voltage drop and excellent high temperature stability, this device is ideal for use as bridge diodes where small footprint and low profile is desired.

Feature(s)

Low Forward Voltage Drop (V_F) and Low Reverse Leakage (I_R)
Excellent High Temperature Stability
Patented Super Barrier Rectifier Technology (SBR^®)
Low Profile Package with Excellent Thermal Dissipation
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e. parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please contact us or your local Diodes representative. https://www.diodes.com/quality/product-definitions/

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Standard
@ TerminalTemperature TT (ºC)	-
AEC Qualified	No
Configuration	Bridge
Maximum Average Rectified Current IO (A)	1
Peak Repetitive Reverse Voltage VRRM (V)	100
Peak Forward Surge Current IFSM (A)	8
Forward VoltageDrop V_F(V)	0.82
@ IF (A)	1
Maximum Reverse Current IR (μA)	25
@ VR (V)	100
Reverse Recovery Time trr (ns)	-
Total Capacitance CT (pF)	-

Technical Documents

Recommended Soldering Techniques

TN1.pdf
