SBR05U40CSP (Not Recommended for new design)

NRND = Not Recommended for New Design

Inactive Datasheet Archive

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.

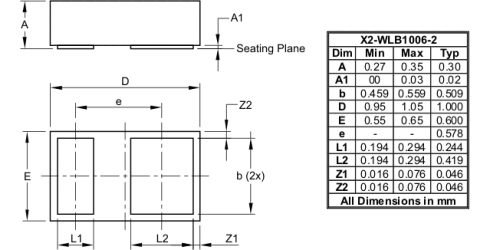

The SBR05U40CSP is a 40-volt 0.5A super barrier rectifier (SBR) that is optimized for low forward voltage drop and low leakage current, housed in a compact chip scale package (CSP) that occupies only 0.6mm2 board-space. The low thermal resistance enables designers to meet design challenges of increasing efficiency whilst at the same time reducing board space. It is ideally suited for use in portable applications.


  • Blocking diode
  • Boost diode
  • Switching diode
  • Reverse protection diode

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) -
Configuration Single
AEC Qualified -

Related Content


Technical Documents

Recommended Soldering Techniques
