SBR02U100LPWQ

0.2A SBR Surface-Mount Super Barrier Rectifier

Datasheet

Contact Sales

Description

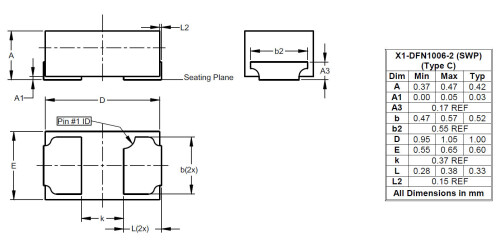

Packaged in X1-DFN1006-2 (SWP) (Type C) package, provides very low V_F and excellent reverse-leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in DC-DC converters and AC-DC adaptors.

Feature(s)

Patented Trench Super Barrier Rectifier SBR® Technology
With Visible and Solderable Side Pads
Ultra-Low-Forward Voltage Drop
Superior Reverse Avalanche Capability
Soft, Fast Switching Capability
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
The SBR02U100LPWQ is suitable for automotive applications requiring specific change control; this part is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities. https://www.diodes.com/quality/product-definitions/

Application(s)

DC-DC converters
AC-DC adaptors

Specifications & Technical Documents

Product Parameters

Compliance (Only Automotive Supports PPAP)	Automotive
AEC Qualified	Yes
Configuration	Single
Maximum Average Rectified Current IO (A)	0.2
Peak Repetitive Reverse Voltage VRRM (V)	100
Peak Forward Surge Current IFSM (A)	5
Forward VoltageDrop V_F(V)	0.81
@ IF (A)	0.2
Maximum Reverse Current IR (μA)	20
@ VR (V)	100
Reverse Recovery Time trr (ns)	11
Total Capacitance CT (pF)	5

Technical Documents

Recommended Soldering Techniques

TN1.pdf
