SB120(LS) (Not Recommended for new design)

NRND = Not Recommended for New Design

Contact Sales

Log in or register to manage email notifications about changes to datasheets or PCNs for this part.


  • Metal-semiconductor junction with guard ring
  • Epitaxial construction
  • Low forward voltage drop
  • High current capability
  • The plastic material carries UL recognition 94V-0
  • For use in low voltage, high frequency inverters, free
    wheeling, and polarity protection application
  • IEC 61000-4-2, level 4 (ESD), > 15KV (air)
  • Lead-Free Finish; RoHS Compliant
  • Halogen and Antimony Free. “Green” Device

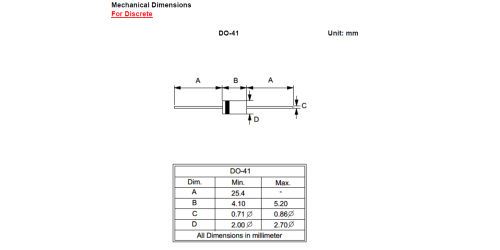

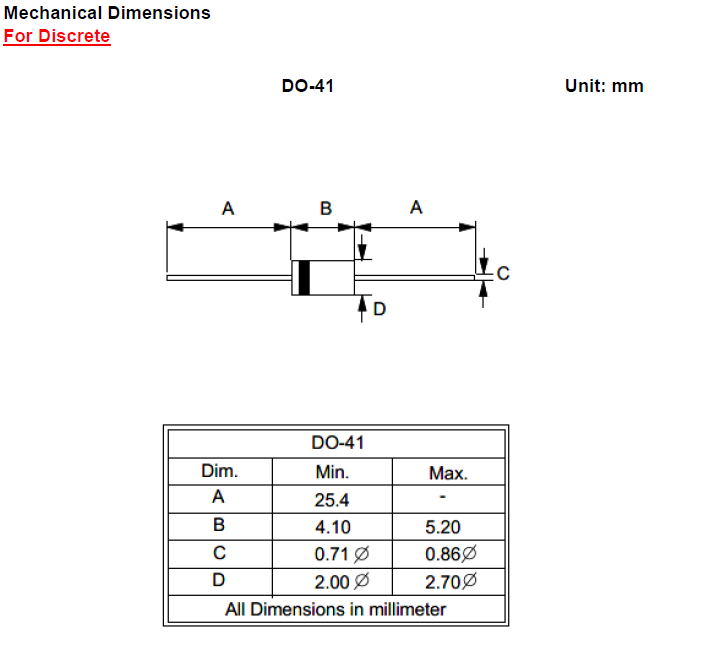

Product Specifications

Product Parameters

@ VR (V) 20
Compliance (Only Automotive supports PPAP) Standard
Configuration Single
Forward VoltageDrop VF(V) 0.5
MaximumAverageRectifiedCurrent IO (A) 1
Maximum ReverseCurrent IR (µA) 100
Peak ForwardSurge CurrentIFSM(A) 40
Peak RepetitiveReverse VoltageVRRM (V) 20
AEC Qualified Yes
