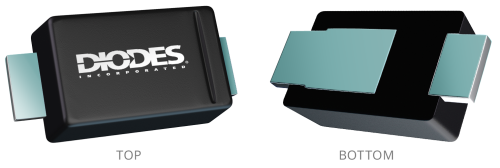

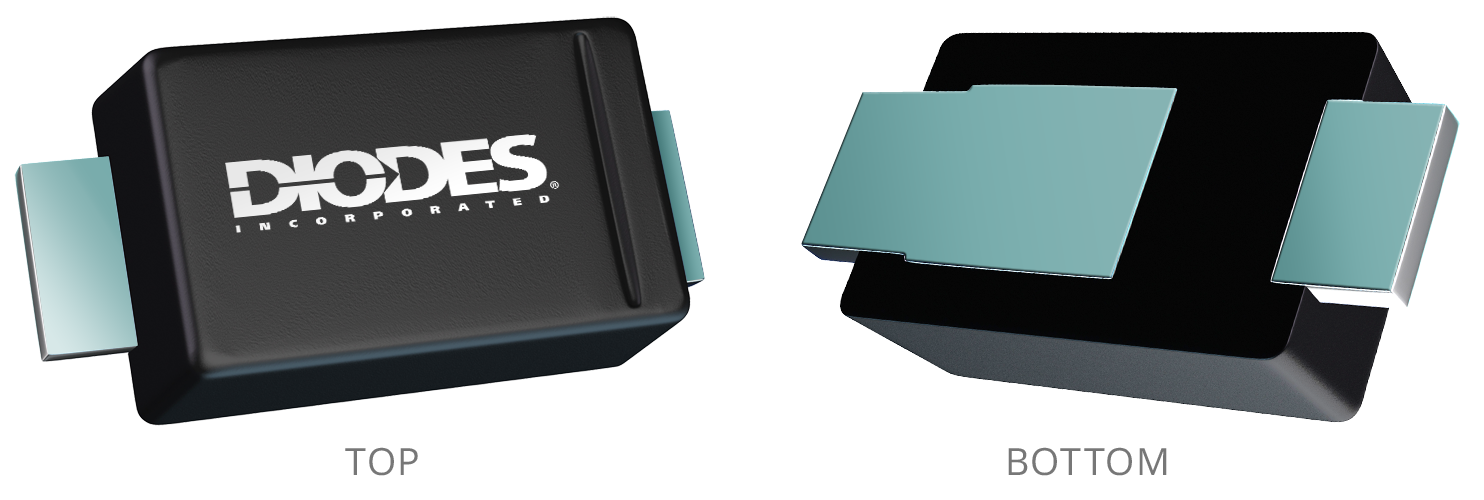

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details. PowerDI123

Back to RS1KP1M

RS1KP1M

1.0A Surface Mount Fast Recovery Rectifier

Datasheet

Contact Sales

Description

Packaged in the compact and thermally efficient PowerDI^®123 package, the DIODES RS1KP1M provides fast recovery time for high efficiency.

Feature(s)

Ideally Suited for Automated Assembly
Fast Recovery Time for High Efficiency
Glass Passivated Die Construction
Lead-Free Finish; RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
For automotive applications requiring specific change control (i.e.: parts qualified to AEC-Q100/101/104/200, PPAP capable, and manufactured in IATF 16949 certified facilities), please refer to the related automotive grade (Q-suffix) part. A listing can be found at https://www.diodes.com/products/automotive/automotiveproducts/.
This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability. https://www.diodes.com/quality/product-definitions/

Application(s)

AC-DC adaptors/chargers
DC-DC converters
Power supplies

Specifications & Technical Documents

Product Parameters

AEC Qualified	No
Compliance (Only Automotive Supports PPAP)	Standard
Product Type	FAST RECOVERY RECTIFIER
Configuration	Single
MaximumAverageRectifiedCurrent I_O(A)	1 A
Maximum Peak Forward Surge Current I_{FSM (A)}	25 A
Peak RepetitiveReverse VoltageV_RRM(V)	800 V
Forward VoltageDrop V_F(V)	1.35 V
@ I_F(A)	1 A
Maximum ReverseCurrent I_R(µA)	10 µA
@ V_R(V)	800 V
Reverse RecoveryTime trr (ns)	500 ns
TotalCapacitance C_T(pF)	6 pF
