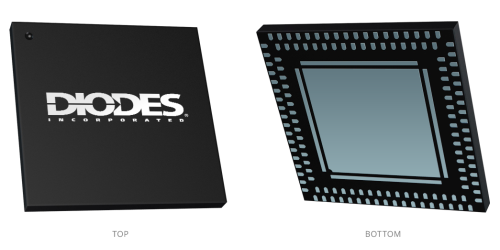

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to PCIe Switch

PI7C9X2G404EVQ

PCIe 2.0 4-Port/4-Lane Auto Packet Switch

Description

The PI7C9X2G304EVQ/PI7C9X2G404EVQ is an Automotive Compliant PCI Express® 2.0 3-port/4-lane / 4-port/4-lane PCI Express Switch specifically designed to meet automotive grade specification, qualified by AEC-Q100 Grade 2 to enhance reliability specification and support wider range temperature up to 105oC, and support advanced power management to reduce power dissipation and lead (Pb)-free requirements. The PI7C9X2G304EVQ is a high-performance, cost-effective solution that can be implemented in systems such as automotive safety and security, traffic mapping, infotainment and telematics platforms.

Feature(s)

  • AEC-Q100 Grade 2: Improve Reliability for Automotive and other applications
  • Integrated Clock Buffer: Ease of design and lower BOM cost
  • Low Power/Low Latency: Ease thermal solution and high performance
  • Compliant to PCISIG PCIe rev 2.1: Ensure good interoperability

Application(s)

  • Telematics
  • Infotainment
  • In-vehicle Wireless AP/Router
  • V2V, V2G, V2X System
  • ADAS

Product Specifications

Product Parameters

Ports 4
Lanes 4
Power 0.3 w
Latency 150 ns
Ambient or Junction Temperature (°C) -40 to 105
Compliance (Only Automotive supports PPAP) Automotive
