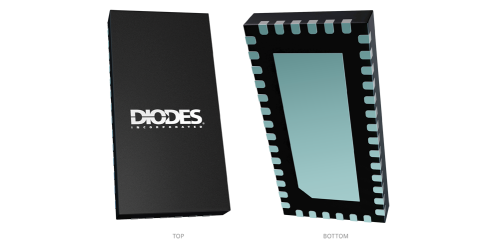

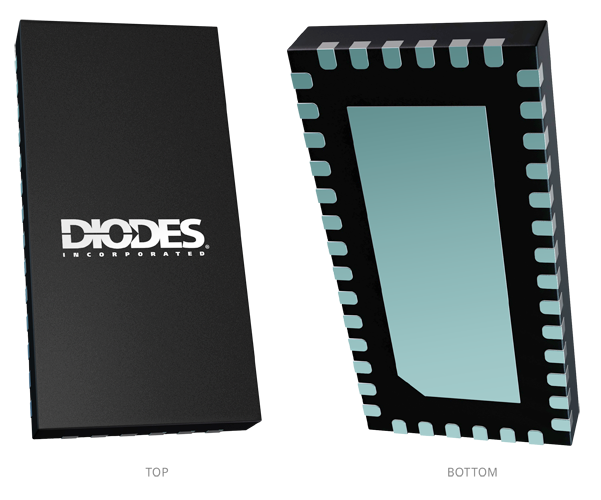

W QFN3060 40

Image shown is for reference only. Actual package may vary. Refer to the product data sheet for package details.

Back to PCI Express Signal Switch

PI3DBS16415

PCIe Gen 4 MUX

Description

The PI3DBS16415 is an 8 to 4 differential channel multiplexer/demultiplexer switch. This solution can switch multiple signal types up to data rate of 20Gbps. Using a unique design technique, Diodes has been able to minimize the impedance of the switch such that the attenuation observed through the switch is minimal. The unique design technique also offers a layout targeted for USB3.0, USB3.1, 10GE, Thunderbolt 3, and SAS3.0 signals, which minimizes the channel to channel skew as well as channel to channel crosstalk as required by high speed signals.

Feature(s)

  • 4 Differential Channel, 2:1 Mux/DeMux
  • Up to 20 Gbps for applications including USB3.0, USB3.1, 10GE, Thunderbolt 3, and SAS3.0
  • Bi-directional operation
  • 3dB bandwith: 14 GHz
  • Low Bit-to-Bit Skew, 1ps typ
  • Low channel-to-channel skew, 7ps typ
  • Low insertion loss: -1.3dB@5 GHz, -1.3dB@8 GHz , -2dB@10 GHz
  • Return loss: -21dB@5 GHz, -13dB@8 GHz, -9dB@10 GHz
  • Low power consumption - 300μA typ
  • Supply Voltage 3.3V
  • Industrial Temperature Range: -40°C to 85°C
  • Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
  • Halogen and Antimony Free. “Green” Device (Note 3)
  • Packaging (Pb-free & Green):

- 42-contact, TQFN (ZH42), 3.5x9m

- 40-contact, TQFN (ZLC40), 3x6mm

Application(s)

  • Routing high speed differential signals such as USB3.1 Gen 2, SAS3, PCIe4, TB3

Product Specifications

Product Parameters

Compliance (Only Automotive supports PPAP) Standard
Configuration Mux, 2:1: 4-Differential Channel
Differential Channels 4
Lanes 2
Type SPDT
Voltage 3.3
